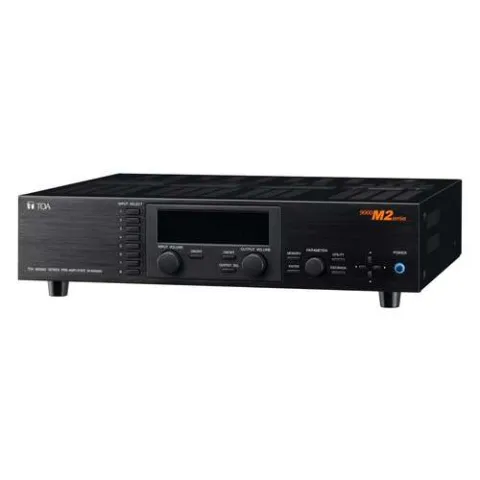

TOA M-9000M2 CU Modular Digital Matrix Mixer Up to 8 Mic/Line Inputs Digital Signal Processor 2 Line Outputs (Expandable to 8) 40W 120V 60Hz

The M-9000M2 Pre-Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used. The most appropriate modules can be selected depending on applications. It is equipped with signal processing and control functions necessary for sound reinforcement, permitting all parameters to be set at the mixer. Settings data can be stored inside the unit and called up using the keys on the front panel. Crestron module available for M-9000M2.

Features:

• Aluminum front panel and steel case
• For rack-mounting, 2 units height
• Up to 16 panels can be connected to 1 M-9000M2 by using a RC-001T control module
• Panels can be cascaded
• Different modules, remote panels and a sensing microphone for individual adjustment to the ambient noise
• Easy to use software

Package includes:

• Digital Mixer
• Power cord (2 m (6.56 ft) x 1
• Rack mounting bracket x 2
• Bracket mounting screw x 4
• Blank panel x 7
• Blank panel mounting screw x 14
• Removable terminal plug (3 pins) x 2
• Removable terminal plug (14 pins) x 1
• CD x 1

For more information, please see Data Sheet
