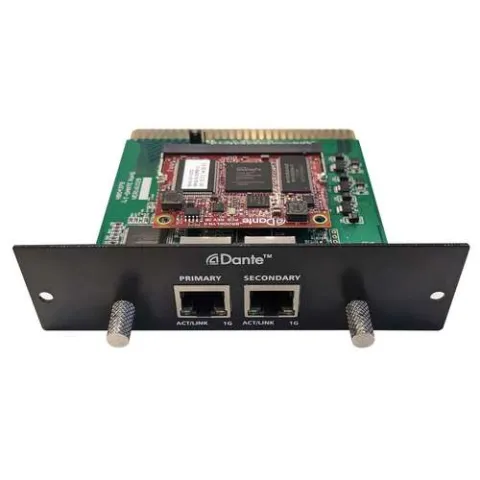

TOA M-800DT-AM Dante Module for M-8080D DSP 5V 8 In Channels and 8 Out Channels

The M-800DT Dante module provides an easy-to use audio over ethernet connection between up to 16 M-8080D Matrix Mixer Systems. It adds 8 Dante Inputs and Outputs channels to expand the possibilities of the M-8080D system with the Dante ecosystem.

Attention:

1. A network router is required for setting up the M-8080D.
2. All accessory connections between the M-8080D and the RD ports must be made using shielded Category 5 cables or higher, along with shielded connectors.

Features:

• Dante In: 8 channels, Out: 8 channels
• 2 Ethernet ports
• Low latency Dante Audio over IP
• Allows the operation of up to 16 M-8080D units as one system
• Compatible with all IP network configurations and with redundancy support.
• Supports up to 192 inputs and outputs allowing for system scalability
• 5 V DC (Powered by M-8080D)
• Works with any exiting IT system compatible with the Dante Network Specifications
