TOA IR-802PA Kit with Infrared Wireless Tuner & Ceiling Speaker & Wireless Microphone & Battery Charger & Rechargeable Batteries

This kit includes models: 1pcs IR-802T CU, 1pcs IR-820SP Y, 1pcs IR-310M Y, 1pcs IR-310BC US & 1pcs IR-200BT-2Y.

Infrared Wireless Tuner IR-802T CU

The Infrared Wireless Microphone System using this IR-802T is a PA system designed for use in the school classrooms assuming that their size is about 10 m #83x 10 m (30 ft #83x 30 ft). The IR-802T is a 2-channel Infrared Wireless Tuner employing a fixed frequency system with 3 AUX inputs. It is combined with an infrared wireless microphone and an infrared wireless speaker to make up the infrared wireless microphone system. The infrared wireless microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

• Designed for use in the school classrooms assuming that their size is about 10 m x 10 m with simultaneous use in adjacent school classrooms
• Equalizer control knobs for low-, mid- and high-frequency outputs
• Frequency response optimized to reduce acoustic feedback
• 3 AUX inputs for PC, TV/DVD player and MP3 audio player
• Output muting by 25 V speaker line signal from emergency/intercom paging
• Mixing output terminal for ALD (Assistive Listening Device)

Wide-Dispersion Ceiling Speaker IR-820SP Y

The Infrared Wireless Microphone System using this IR-820SP is a PA system designed for use in the school classrooms assuming that their size is about 10 m. The IR-820SP is a ceiling-mounted powered speaker with the infrared receiver and offers a wide frequency range of high-quality sound output. It features a digital amplifer for the amplification section, and a full-range speaker for the speaker section. Use of the supplied mounting hardware and optional HY-TB1 Tile Bar Bridge permits it to be versatilely mounted to match a wide range of applications and installation locations. This speaker is combined with an infrared wireless microphone and the IR-802T Infrared Wireless Tuner to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

• Built-in infrared receiver and 20 W digital amplifier
• Unique wide-dispersion acoustic structure guarantees uniform output over a wide radius
• Bass-reflex speaker system achieving a wide frequency range and high power-handling capability
• Easy installation with quick, optimally positioned ceiling mounting

Lightweight Infrared Wireless Hands-Free Microphone IR-310M Y

The IR-310M is a lightweight, hands-free infrared wireless microphone. It is designed for use in the school classrooms and eliminates problems with interface or eavesdropping, allowing simultaneous use in adjacent classrooms. It is capable of operating on one of two selectable IR frequencies and two transmitters can work simultaneously. It is also capable of operation with one piece of rechargeable AA Ni-MH battery IR-210BT-2 for continuous operation up to 8 hours.

• Usable as hands-free or hand-held microphone
• Lightweight body with unobtrusive styling
• 8-hour operation with single AA battery
• Microphone sensitivity adjustable to suit application
• Sturdy clothing clip to prevent wobbling or rotation during hands-free use

Battery Charger IR-310BC US

The TOA IR-310BC is a dedicated battery charger for the IR-310M Infrared Wireless Microphone. It employs a quick charging system for a nickel metal hydride (NiMH) battery to be fully charged within 3 hours.

• Dedicated battery charger for IR-310M
• Anti-overcharging design

Rechargeable battery IR-200BT-2Y

The IR-200BT-2 (containing 2 pieces) is an AA nickel metal hydride (Ni-MH) rechargeable battery pack designed for exclusive use with the infrared wireless microphones.

• 2 pcs Ni-MH rechargeable batteries for use with the transmitters and charging stations of the IR series

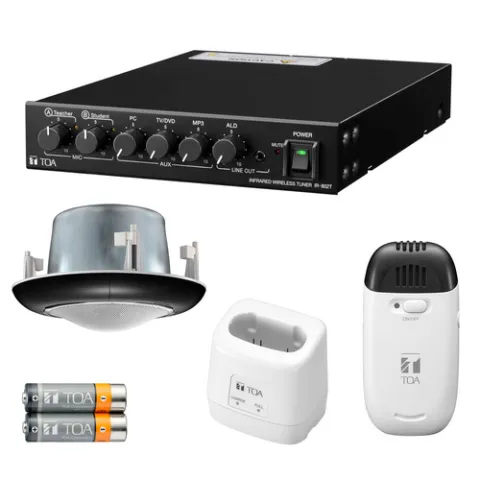

Kit includes:

• Infrared Wireless Tuner IR-802T CU x 1
• Ceiling Speaker IR-820SP Y x 1
• Wireless Hands-Free Microphone IR-310M Y x 1
• Battery Charger IR-310BC US x 1
• Rechargeable battery IR-200BT-2Y x 2 pcs
