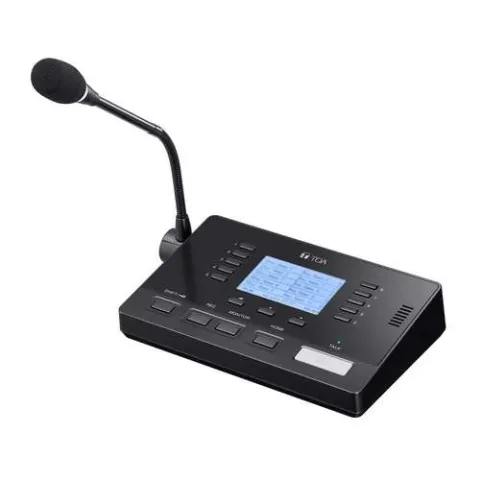

TOA IP-A1RM Y IP-A1 Series IP Remote Microphone 3.5W PoE (IEEE802.3af Class 3) Black

The IP-A1RM is an IP remote microphone which is designed to make audio broadcasts to IP-A1 series receiving devices via network. It achieves clear microphone announcements without distortion thanks to its built-in compressor effect. It allows both individual and group broadcast so that single or multiple IP-A1 series receiving device(s) can receive the audio as flexible PA operation. Key button operation controls a variety of functions such as internal audio file playback, HTTP/HTTPS command set transmission and physical control outputs to control external devices.

Features:

• Angle adjustable gooseneck microphone with compressor effect
• 10 function-assignable keys to initiate broadcasts or controls
• GUI calendar scheduler function (up to 2,000 settings)
• System mute function to mute all broadcasts made by every single IP-A1 series devices within the same network
• 1 AUX audio input (LINE/MIC selectable, phantom power On/Off)
• 2 control inputs, 1 control output and 1 mute control input
• Independent volume control for microphone and AUX input
• HTTP/HTTPS commands (send/receive)
• Audio file storage (20 files, total 80MB, WAV/MP3)
• PoE powered

The IP remote microphone shall be able to make audio broadcasts with a built-in gooseneck microphone to IP audio endpoints via network. It shall be equipped with a built-in audio compressor to avoid distortion and achieve clear microphone announcements. The IP remote microphone shall allow both individual and group broadcast by using SIP and Multicast protocols. The IP remote microphone shall be equipped with ten selection buttons which are function-assignable to activate a variety of different broadcasts and controls. Twenty multi-cast ports shall be available for group paging and shall have the facility of storing up to twenty audio files with the code of WAV or MP3 format internally. The device shall have the flexibility of broadcasting these files from a calendar schedule at predetermined times or repeated when necessary triggered from a control input, or from remote API (HTTP). The IP remote microphone shall be capable of muting other TOA IP-A1 series devices such as IP-A1AF, IP-A1PA12, IP-A1PC238, IP-A1PC580R or IP-A1PC580S within the same network.

Remote settings shall be achieved by connection to a Windows® based personal computer and by using the PC's browser, operational settings, functions and system status can be established. The IP remote microphone shall have an electronically balanced 10k Ω AUX audio input with LINE/MIC selection with switchable ON/OFF 12 V DC phantom power and a corn-type monitor speaker. The built-in monitor speaker shall be able to be used for recording monitoring and two-way communications. The independent volume control shall be available for AUX audio input and a built-in microphone. The IP remote microphone shall have two control inputs and one control output with an additional 24 V DC mute contact. The IP remote microphone shall offer priority status among the various broadcast modes that will override and interrupt a lower priority broadcast. Power source shall be supplied from a PoE switching hub.

Package includes:

• IP Remote Microphone
• Zip tie x 2

For more information, please see Data Sheet
