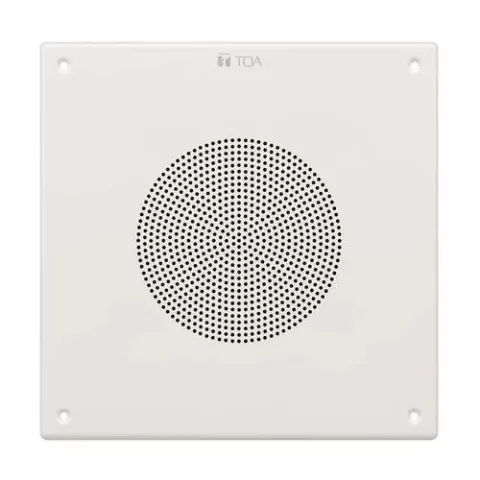

TOA IP-A1PC580S IP-A1 Series IP Square Speaker 8W 8" POE Mic/Line Level Input with Phantom Power 2 Control Inputs 1 Control Output

The IP-A1PC580S is a PoE-powered Surface mount Speaker with a built-in 8 W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System via ONVIF audio backchannel. Device control and further system integration is accessed through remote API (HTTP/HTTPS) or local control inputs.

Features:

• 20cm (8") dual cone-type speaker with metal construction
• Receive SIP audio, ONVIF and Multicast
• Local broadcast using internal audio files
• 1 audio input (LINE/MIC selectable, phantom power On/Off)
• 8W built-in amplifier, 1 LINE audio output
• 2 control inputs and 1 control output
• HTTP/HTTPS commands (receive)
• Audio file storage (20 files, total 80MB, WAV/MP3)
• Playback programs (Repeat, Weekly Timer)
• PoE powered

The IP square loudspeaker shall be of a surface mount type design, with a full robust metal construction that shall include a class D type amplifier capable of producing up to 8 watts of power. The IP square loudspeaker shall be SIP compatible to broadcast clear and intelligible VoIP messages via a single Category 5 or greater network cable and shall support various standard network protocols and forums such as ONVIF (Open Network Video Interface Forum) and shall be able to complement VMS (Video Management System) and other audio network integration systems. Twenty multi-cast ports shall be available for group paging. The IP ceiling mount loudspeaker shall have a LINE/MIC input to accommodate an external microphone allowing the possibility to achieve two-way communication (talk-back) or other external audio devices.

Switching between LINE/MIC shall be accomplished by using DIP switches. Phantom power shall be available for the microphone as well as an independent volume adjustment. The IP ceiling mount loudspeaker shall have the facility of storing up to twenty audio files with the code of WAV or MP3 format internally. The device shall have the flexibility of broadcasting these files at predetermined times by setting the start and end time along with the day(s) of the week or repeated when necessary and triggered from a control input, or remote API (HTTP). There shall be two controlled inputs and one controlled output. The IP square loudspeaker shall be capable of being muted by TOA IP-A1PG Paging Gateway as the highest priority operation.

Remote settings of the IP ceiling mount loudspeaker shall be achieved by connection to a Windows® based personal computer and by using the PC's browser, operational settings, functions and system status can be established. The loudspeaker shall incorporate a single 20 cm (8") full-range dual cone-type transducer with a smooth frequency response of 50 Hz to 16.5 kHz measured on axis with a Sound Pressure Level (SPL) of 97dB measured at 1 meter with a power input of 1 watt or 106dB with a power input of 8 watts measured at 1 meter.

Package includes:

• IP Square Speaker
• Pattern paper x 1
• Removable terminal plug (6 pins, preinstalled on the unit) x 2
• Mounting screw (5x38) x 4

For more information, please see Data Sheet
