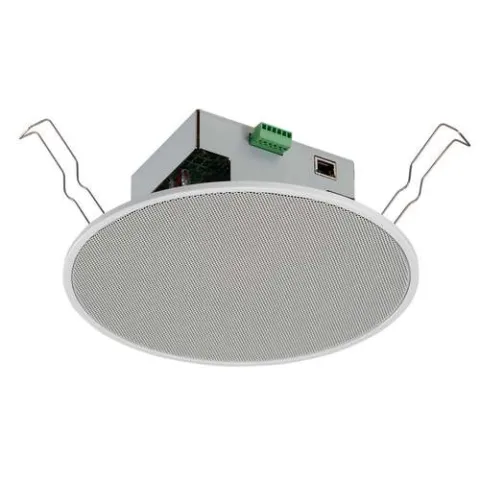

TOA IP-A1PC238 IP-A1 Series IP Ceiling Speaker 8W POE with Spring Catch Mounting Hardware 2 Control Inputs 1 Control Output

The IP-A1PC238 is a PoE-powered Ceiling Speaker with a built-in 8 W amplifier and internal data storage for up to 20 audio files. It supports SIP protocol for flexible integrations with VoIP devices, and its 20 multicast ports are available for group paging operations. It can also receive broadcasts from Video Management System using ONVIF. Device control and further system integration is accessed through remote API (HTTP/HTTPS) or local control inputs.

Features:

• 16cm (6") cone-type speaker for in-ceiling installations
• Receive SIP audio, ONVIF Audio and Multicast
• Local broadcast using internal audio files or local audio source
• 8W built-in amplifier
• 2 control inputs and 1 control output
• HTTP commands (receive)
• Audio file storage (20 files, total 80MB, WAV/MP3)
• Playback programs (Repeat, Weekly Timer)
• PoE powered

The IP ceiling mount loudspeaker shall be of an in-ceiling type design, with a full lightweight metal construction with no visible fixings and a discreet outer bezel of only 5 mm. Installation shall be via pre-mounted springs allowing it to be mounted quickly and easily into ceilings with a thickness of between 5 - 25 mm (0.2" - 0.98"). The IP ceiling mount loudspeaker shall be SIP compatible to broadcast clear and intelligible VoIP messages via a single network cable and shall support various standard network protocols and forums such as ONVIF (Open Network Video Interface Forum) and shall be able to complement VMS (Video Management System) and other audio network integration systems.

Twenty multi-cast ports shall be available for group paging. The IP ceiling mount loudspeaker shall have the facility of storing up to twenty audio files with the code of WAV or MP3 format internally. The device shall have the flexibility of broadcasting these files at predetermined times by setting the start and end time along with the day(s) of the week or repeated when necessary and triggered from a control input, or remote API (HTTP). There shall be two controlled inputs and one controlled output. The IP ceiling mount loudspeaker shall be capable of being muted by TOA IP-A1PG Paging Gateway as the highest priority operation. Remote settings of the IP ceiling mount loudspeaker shall be achieved by connection to a Windows® based personal computer and by using the PC's browser, operational settings, functions and system status can be established.

There shall be an internal class-D amplifier capable of producing up to 8 watts of power. The loudspeaker shall incorporate a single 16 cm (6") full-range cone-type transducer with a smooth frequency response of 60 Hz to 20 kHz measured on axis with a Sound Pressure Level (SPL) of 94dB measured at 1 meter with a power input of 1 watt or 103dB with a power input of 8 watts measured at 1 meter. The power source shall be supplied from a PoE switching hub.

Package includes:

• IP Ceiling Speaker
• Pattern paper x 1
• Removable terminal plug (6 pins, preinstalled on the unit) x 1

For more information, please see Data Sheet
