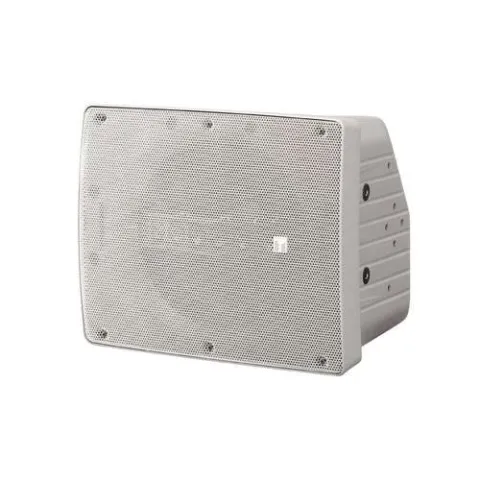

TOA HS-1200WT Controlled Directivity Speaker 12" 2-Way 300W (8Ohm/70V) White

One of the most difficult speaker requirements to satisfy is a cost-effective mid-size speaker system that offers high quality sound no matter what the application. TOA HS-Series speakers are equipped with narrow-directivity control (90° horizontal x 40° vertical). This useful feature allows tailoring the speaker's dispersion characteristics to better suit the acoustic environment in which it is installed. The versatile HS-Series is compatible for use with 100V/70V lines for distributed applications. The HS-Series speakers are exceptional in offering useful features at an attractive price.

Features:

• 12" LF speaker
• Well-controlled sound coverage: 90° horizontal x 40° vertical
• High impedance version
• Easy to carry and easy to install, with handle for easy transportability
• Twin input terminal connections (Speakon® and screw terminals) for fixed and mobile installation
• Size and weight have been reduced thanks to the use of the array tweeter
• Can be used as a floor monitor

The speaker shall be the two-way speaker with a sealed box enclosure with polypropylene and a protective punched front grill with a surface-treated steel plate. The speaker shall be compatible with low and high impedance speaker systems and include a built-in 100V matching transformer. The rear panel shall have screwdriver-adjustable tap settings of: 60W, 30W, 15W and 8 ohms. The rated input shall be 60W, the continuous pink noise shall be 100W at 8 ohms and continuous program shall be 300W at 8 ohms.

The speaker shall feature a 30 cm (12") woofer and a 6-balanced-dome tweeters array with a 90° x 40° dispersion. Frequency response shall be 70 to 20k Hz, with crossover at 3k Hz. Sensitivity shall be rated at 97 dB (1 W, 1 m). The speaker system shall be designed for both fixed installation uses and on-the-road and shall be capable of being easily carried with an accessory handle. Its built-in overload protection circuitry for tweeter shall cut off a signal when an excessive input signal is received. Input connections shall be via a speakon connector or screw terminal.

Package includes:

• Speaker
• Handle x 1
• Handle fitting bracket x 2
• Handle mounting screw x 2
• Rubber foot x 2
• Rubber foot mounting screw x 2

For more information, please see Data Sheet
