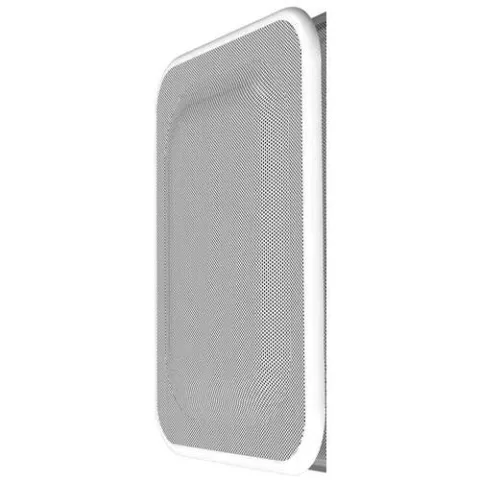

TOA HB-1 Flush-Mount Subwoofer InWall/Ceiling-Mount 8" 240W Paintable 8Ohm

The HB-1 is a high-power, wall/ceiling-mounted subwoofer system employing a 20 cm speaker unit. Although small in size, the HB-1 provides clear super-low frequency sound reproduction thanks to its Acoustic Super Woofer enclosure construction.

Features:

• For undisturbed interior aesthetics
• Extremely small depth for flush-mounting
• High-power 8" woofer with 110 mm ferrite magnet and aluminum bobbin
• Acoustic super-woofer with acoustical bandpass filtering construction
• Thin-wall metal frame, with large interior volume for excellent low-frequency audio response, plus efficient heat dispersion
• Easy installation

The subwoofer shall be a tuned, ported enclosure with acoustic bandpass filter design. The enclosure shall be compact and suitable for flush-mount installation in a space 14.17" x 18.9" (360 x 480 mm) and occupy a maximum depth of 4.1" (103 mm) including board thickness. The loudspeaker component shall have a diameter of 8" (20 cm) with ferrite magnet, rubber surround and a nominal impedance of 8 ohms. The rated power handling from 40 to 200 Hz (-10 dB) shall be 240 W Continuous Program and 80 W Continuous Pink Noise. The frequency response shall be 45 - 200 Hz (-10 dB, 1/2 space).

The output sound pressure level shall be 91 dB SPL (half-space) at a distance of one m with one W of input power applied. The subwoofer enclosure shall be steel plate with a black paint finish. The grille frame shall be constructed of fire-resistant ABS resin with a white, paint-ready finish. The mounting bracket shall be of heavy duty steel construction. The input connector shall be a removable terminal block with screw terminals allowing two pairs of speaker wire for input and loop-through terminations.

Package includes:

• Subwoofer
• Front frame x 1
• Mounting bracket x 1set
• Anchor piece x 2
• Stud holder x 4
• Screw x 1set

For more information, please see Data Sheet
