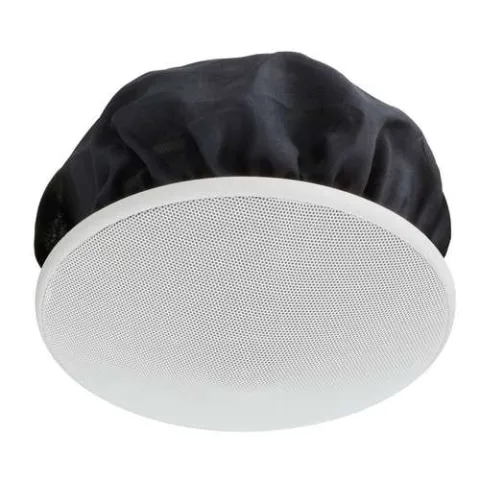

TOA F-2352SC Co-Axial Ceiling Speaker 5" for Non-Plenum Applications 25/70.7V Transformer 6W 8Ohm

The F-2352SC ceiling-mounted speaker covers an extremely wide area and can be used for25, 70 and 100 V line applications. Well-balanced sound can be heard uniformly at any location.

Features:

• Co-axial: 5" cone driver and dome tweeter
• Special diffuser provides wide off-axis high frequency response
• Four pole push-terminal input connector
• Dust cover to protect components
• Low power applications and medium ceiling height (2 to 4 m)

The overhead music/paging speaker shall be a two-way bass-reflex enclosure type suitable for ceiling mounting. The low frequency component shall be a 4.72" (12 cm) cone-type speaker and the high frequency component shall be a 1" (2.5 cm) balanced-dome tweeter. The speaker shall be compatible with low and high impedance speaker systems and include a built-in 25/70.7/100 V matching transformer. The front baffle shall have screwdriver-adjustable tap settings of: 6 W, 3 W, 1.5 W, 0.5 W, and 0.25 W for 70.7 V operation; 0.75 W, 0.4 W, 0.2 W, 0.06 W and 0.03 W for 25 V operation; and 6 W, 3 W, 1 W, and 0.5 W for 100 V operation; plus settings for 16 ohm and direct 8 ohm operation.

The output sound pressure level at a distance of 1 m with 1 W of input power applied shall be 89 dB SPL. The rated power handling (Continuous Program) shall be 18 W at 8 ohms, 12 W at 16 ohms, and 6 W when used with a 70.7, or 100 V line system. The speaker shall have a frequency response range from 80 Hz to 20k Hz. Speaker directivity shall be less than Q = 8 for all ISO 1/3-octave bands up to 4k Hz when measured in a half-space anechoic environment using 1/3-octave band-limited pink noise.

The speaker baffle shall be made of fire-resistant ABS resin. The grille shall be white painted steel plate with fire-resistant ABS resin trim and shall be field re-paintable. Instructions for re-painting the grille shall be included in the speaker package. The speaker shall be equipped with a spring-loaded push-in connector having two input terminals and two bridging pass-through terminals.

Package includes:

• Speaker
• Panel x 1
• Paper pattern x 1

For more information, please see Data Sheet
