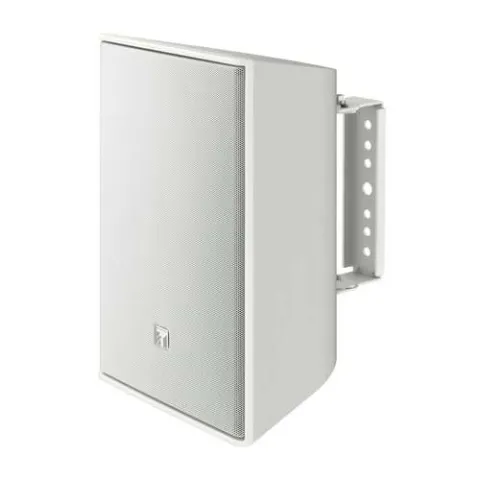

TOA F-08WT-WP-UE 2-Way Surface Mount Speaker System 8" 60W UL1480A for Outdoor Environments 100V70V/8Ohm IP65 Rated White

The F-08WT-WP-UE is a 2-way surface-mount speaker system designed to deliver high-quality audio for a variety of applications, This versatility makes it ideal for foreground or background music playback, as well as public address announcements. It is IP65-rated and compliant with EN 54-24 Type B as well as UL 1480A (UEAY (Outdoor use). The F-08WT-WP-UE is certified according to the European Standard EN 54-24: 2008, DoP number is 24-105.

Features:

• Versatile 8-inch 2-way surface-mount speaker system
• Perfect for music and announcements
• Sleek design for seamless integration with walls and ceilings
• Flexible angle adjustment for both wall and ceiling mounts
• IP65-rated for dust and water resistance
• Compliant with EN 54-24 and UL 1480A (UEAY outdoor use)
• Ideal for permanent installs or portable setups

The speaker shall be a 2-way, bass-reflex type enclosure for ceiling or wall mounting. The low-frequency driver shall be a 20 cm (8") polypropylene (PP) cone-type, and the high-frequency driver shall be a 25 mm (1") dome tweeter. The speaker shall have a rated noise power handling capacity of 90 W (8 Ω) and a continuous program power capacity of 180 W (8 Ω). The rated input for the speaker shall be 60 W when connected to 100 V or 70 V line systems. The speaker shall offer multiple tap settings, including 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), and 3.3 kΩ (3 W) for the 100 V line, and 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), and 3.3 kΩ (1.5 W) for the 70 V line. The impedance shall be 8 Ω for direct connection.

The speaker shall have a sensitivity of 90 dB at 1 W, measured at 1 m distance in a 1/2 free sound field. The frequency response of the speaker shall range from 70 Hz to 20 kHz, with a -10 dB variance in a 1/2 free sound field. The directivity angle of the speaker shall be 100° horizontally and 100° vertically, ensuring broad coverage for optimal sound dispersion. The speaker shall have an ingress protection rating of IP65, providing resistance against dust and water for reliable operation in various environments.

The speaker shall comply with EN 54-24:2008 and UL 1480A (UEAY outdoor use). The specifications in accordance with EN 54-24 shall include a sensitivity of 75 dB (1 W, 4 m), a maximum sound pressure level (SPL) of 92 dB (60 W, 4 m), and a coverage angle (-6 dB) of Horizontal 170° (500 Hz), 130° (1 kHz), 100° (2 kHz), 110° (4 kHz) and Vertical 150° (500 Hz), 130° (1 kHz), 100° (2 kHz), 90° (4 kHz). The ingress protection rating in accordance with EN 54-24 shall be IP33C. The enclosure shall be constructed of high-impact polystyrene (HIPS) and finished in white. The grille shall be made of aluminum and finished to match the enclosure color.

The U-bracket and speaker bracket shall be made of stainless steel and shall be painted to match the finish of the enclosure. The speaker shall be capable of operating in a temperature range from -10°C to +50°C (14°F to 122°F).

Package includes:

• Speaker
• U bracket x 1
• Speaker bracket x 2
• Bracket fixing screw x 1 set
• Terminal cover x 1
• Terminal cover mounting screw x 4

For more information, please see Data Sheet
