TOA D-981 D-901 Series Remote Control Module Programmable Memory Selection Volume Up/Down 8 Control Inputs and Outputs

The D-981 is a remote control module designed for use with the D-901 Digital Mixer, etc. It permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment. Tally output can also be provided for external control.

Features:

• 8 contact inputs, 8 contact outputs
• Permits preset memory recall, input/output channel volume control, stereo input selection and channel ON/OFF operation to be remotely controlled from external equipment
• Tally output can also be provided for external control

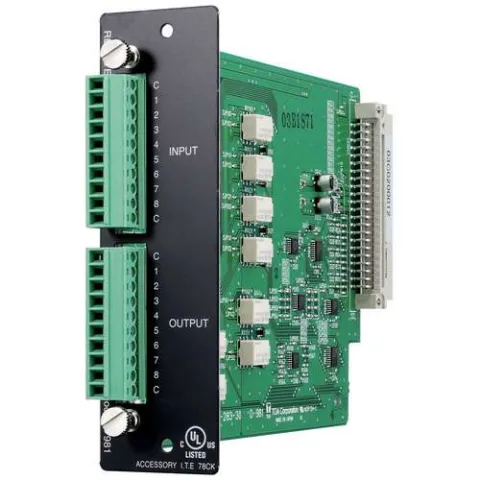

Remote control module with 2 removable 9-pin screw terminals, with 8 inputs and 8 outputs each. Presets, volume adjustment, switching on and off of the inputs or outputs, and selection of the stereo inputs, functions via Windows® software or control elements can be assigned freely to the control inputs. Simultaneous access on status information at the control outputs to inform the functions of the control inputs as feedback and for interfacing to other systems.

Package includes:

• Remote Control Module
• Removable terminal plug (10 pins, preinstalled on the unit) x 2

For more information, please see Data Sheet
