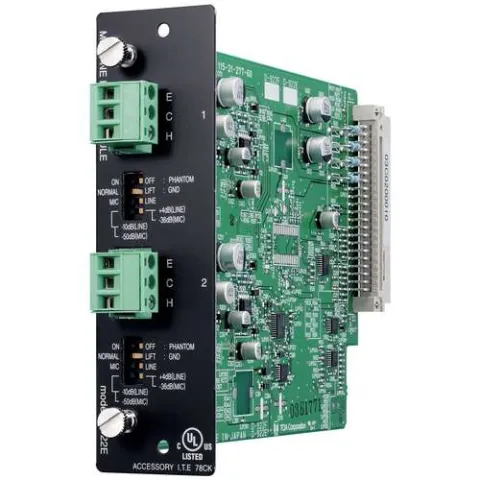

TOA D-922E D-901 Series Input Module (20 Bits Monaural Type) 2 Mic/Line Inputs Balanced 20-Bit A/D Phoenix-Type Connectors

The D-922E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors. The D-901's 4-pole DIP switch is used to set the input sensitivity, phantom power supply, and ground lifting.

Features:

• 2-channel microphone/line input module
• Equipped with removable terminal block type connectors

Input module with two balanced audio inputs. Removable screw terminals for signal input. Sensitivity and phantom power adjustable on the panel, ground-lift switch.

Package includes:

• Mic/Line Input Module
• Removable terminal plug (3 pins, preinstalled on the unit) x 2

For more information, please see Data Sheet
