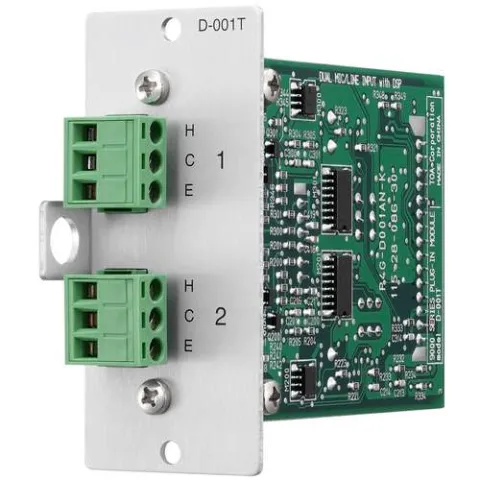

TOA D-001T Dual Mic/Line Input Module with DSP for 9000/9000M2 Removable Terminal Block

The D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use. The D-001T can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

Features:

• 2 balanced mic / line Inputs
• Digital signal processing:
  • 10-band parametric EQ
  • Bass / treble, loudness
  • High pass / low pass filters, compressor
• Adjustable sensitivity (-60 to -10 dBV, 9-steps)
• Phantom power (24 V DC)
• Removable terminal block
• Max. 4 input modules per chassis
• Required for VOX-function and input measure

2-channel input module for two symmetric Mic / Line sources. Adjustable sensitivity range from microphone level to line level. Phantom power for microphones can be activated. High fidelity through 24-bit A/D-converter and extremely low distortion. Built-in digital signal processing (DSP) with treble and bass tone control, high and low pass filters and 10 parametric equalizers. Compressor with 5 predefined settings for ease of use. Loudness can be optionally activated. Connection via two supplied Plug-in 3-pin connectors.

Package includes:

• Dual Mic / Line Input Module
• Removable terminal plug (3 pins) x 2
• Module mounting screw x 2

For more information, please see Data Sheet
