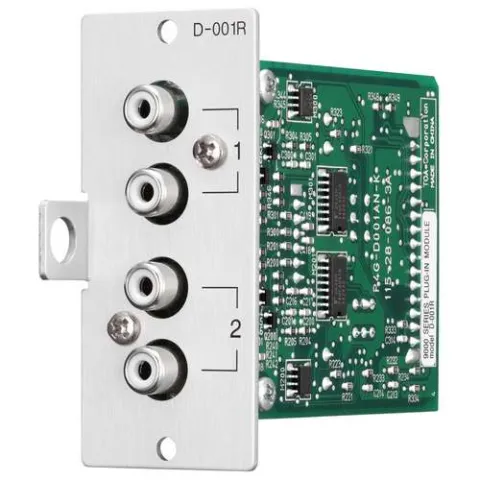

TOA D-001R Line Input Module with DSP for 9000/9000M2 Stereo Summing Dual RCA Jacks on Each Input

The D-001R is a line input plug-in module designed for use with the 9000 Series amplifiers. It has 2-channel unbalanced inputs of RCA jacks. Input signals to both channels are mixed together. The D-001R can process effect for TONE/EQ/COMPRESSOR to two inputs independently.

Features:

• Two RCA phone inputs per channel provides stereo summing
• Digital Signal Processing
  • 10-band parametric EQ
  • Bass / treble, loudness
  • High pass / low pass filters, compressor
• Max. 4 modules / chassis

2-channel input module for two stereo sources that are internally mixed to one mono signal each. Adjustable sensitivity range from mic level to line level. High fidelity 24-bit A/D-converter and extremely low distortion. Built-in digital signal processing (DSP) with treble and bass tone control, high and low pass filters and 10 parametric equalizers. Compressor with 5 predefined settings for ease of use. Loudness can be optionally activated. Connection via two supplied removable 3-pin screw terminals.

Package includes:

• Line Input Module
• Module mounting screw x 2

For more information, please see Data Sheet
