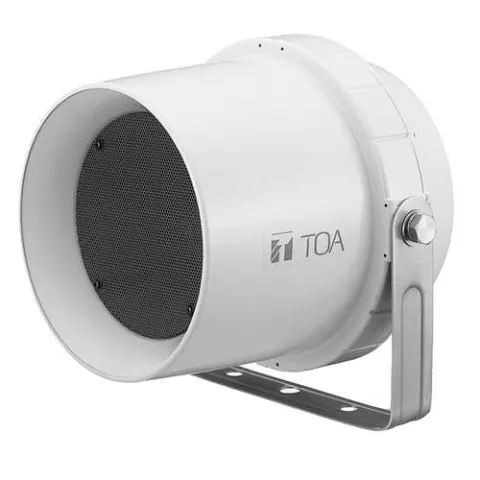

TOA CS-64U UL Listed Wide-Range Paging Speaker 6W 70.7/100V Transformer with Mounting Bracket

The CS-64U outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-64U employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90° operation.

Features:

• Round wide-range speaker for paging, background music and tone signaling distribution
• Exponential horn improves directivity characteristics and ensure uniform and clear sound dispersion
• Wide temperature range: -20 to +55 °C
• Stainless steel hardware protects the speaker from corrosion

The wide-range paging speaker shall be an exponential, direct-radiator design suitable for paging, background music, and tone-signaling distribution. The speaker component shall be a 4.72" (12 cm) cone-type dynamic driver, treated for weather resistance. Power handling shall be 6 W. The speaker shall incorporate a matching transformer for 70 V and 100 V distributed systems. Transformer wattage taps shall include: 70 V: 6 W (830 ohms), 3 W (1.7k ohms), 1.5 W (3.3k ohms), 0.5 W (10k ohms); 100 V: 6 W (1.7k ohms), 3 W (3.3k ohms), 1 W (10k ohms). Sensitivity (1 W/1 m) shall be 96 dB SPL.

Frequency response shall be 130 - 13 kHz. The paging speaker shall be UL Listed under category UL 1480. The horn/cover material shall be ABS resin and off-white in color. The protective net/grille shall be surface-treated steel plate with dark-gray powder coating. All mounting hardware, including screws and bolts, shall be stainless steel. Terminations shall be via an integral 2-core cabtyre cord, 0.24" (6 mm) in diameter and 24" (600 mm) in length.

For more information, please see Data Sheet
