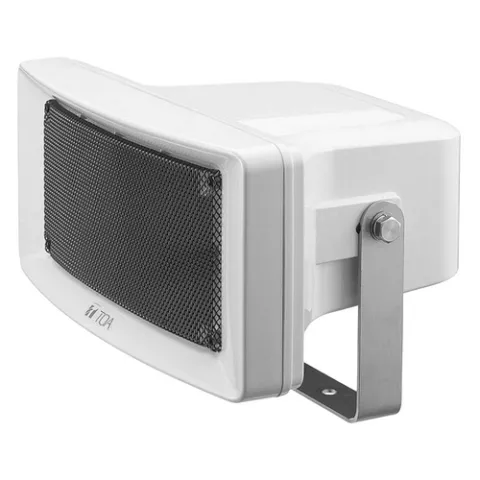

TOA CS-304U UL Listed Wide-Range Paging Speaker 30W 70.7/100V Transformer with Mounting Bracket

The CS-304 outdoor speaker features stainless steel hardware for all-weather durability. It is designed to offer the high intelligibility of weather-resistant horns combined with the high sound quality of dynamic speakers. The CS-304 employs the rotary switch that facilitates impedance changes. It also employs a constant directivity horn for clear sound output over its horizontal range of 90°operation.

Features:

• Ensure long-lasting outdoor performance with a rust-resistant stainless steel and resin construction.
• Deliver uniform sound coverage across your space through the 90-degree constant directivity horn.
• Maintain reliable operation in harsh weather conditions with certified IP65 dust and water protection.
• Save time during setup by easily adjusting power levels with the built-in rotary switch.
• Meet strict safety and professional standards with the UL 1480 listed design.
• Enhance facility safety using fire-retardant materials that meet UL94 V-0 standards.
• Enjoy flexible installation options on walls or ceilings with the included stainless steel bracket.

The wide-range paging speaker shall be a constant-directivity design,. The speaker component shall be a 12 cm (4.72") cone-type driver, treated for weather resistance. Power handling shall be 30 W. The speaker shall incorporate a matching transformer for 70 V and 100 V distributed systems. Transformer wattage taps shall include: 70 V: 30 W (170 ohms), 15 W (330 ohms), 10 W (500 ohms), 5 W (1k ohms); 100 V: 30 W (330 ohms), 20 W (500 ohms), 10 W (1k ohms).

Sensitivity (1 W/1 m) shall be 98 dB. Frequency response shall be 120 Hz - 15 kHz. Horizontal directivity shall be 90°. The paging speaker shall be UL Listed under category UL 1480 (UEAY). The speaker shall comply with IEC IP-65 for dust and moisture resistance. The horn and cover material shall be fire-resistant ABS resin, off-white, and painted. The protective net shall be aluminum with gray paint. All mounting hardware, including the bracket and screws, shall be stainless steel. Terminations shall be via an integral 2-core cabtyre cord, 6 mm (0.24") diameter and 600 mm (24") length.

For more information, please see Data Sheet
