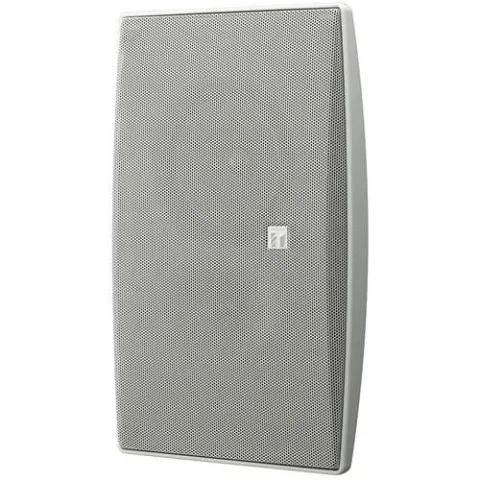

TOA BS-1034 Wall Mount Music/Paging Speaker Slim Box Type 70.7/100V Transformer (10W) Speaker Receptacle Included White

The BS-1034 is a wall mount speaker that can be installed easily on the wall with help of the plug-in speaker receptacle.

Features:

• 2-way speaker
• Easy and quick installation
• Attractive design based on the golden ratio
• Input impedance selector with rotary switch
• Fire resistant according to UL 94-V0

The speaker unit shall combine a 5" (12cm) cone type low frequency speaker with a balanced dome-type high frequency speaker. The unit shall be capable of wall mounting with a supplied plug-in speaker receptacle accessory. The input connector shall be an M4 screw terminal, with an 11 mm distance between barriers.

The speaker impedance shall be 1kohm (10W), 2kohm (5W), 3.3kohm (3W) or 10kohm (1W) for a 100V line, and 500ohm (10W), 1kohm (5W), 2kohm (2.5W), 3.3kohm (1.5W) or 10kohm (0.5W) for a 70V line. The output sound pressure level at a distance of 1m with a 1W input level applied shall be 90 dB SPL. The speaker shall have a frequency response of 120 - 20,000Hz (-20dB). The speaker enclosure shall be constructed of fire resistant HIPS resin. The grille shall be constructed of surface-treated steel plate net.

Package includes:

• Speaker
• Speaker receptacle x 1
• Wall mounting screw x 2

For more information, please see Data Sheet
