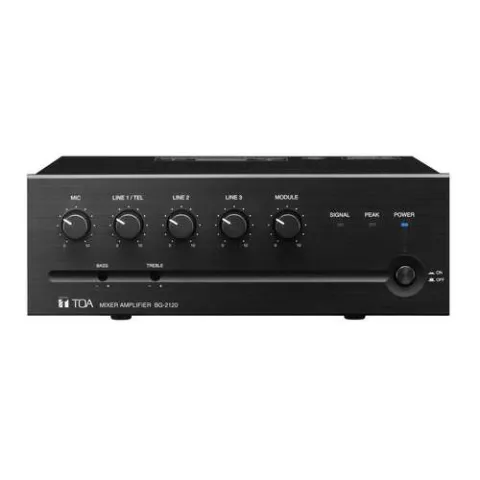

TOA BG-2120 CU 5-Input Mixer Amplifier 120W (4Ohm/25V/70V) One 900 Series Module Slot 2U

The BG-2120 (120 W) are 5-input mixer amplifiers for background music and general announcement. These units are suited for use in bars, retail stores, and banquet rooms, and are equipped with the MOH output that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-260 (60 W).

Features:

• Each input freely assignable to the MOH output.
• Automatic or manual mute function.
• Easy setting of each function with the rear-mounted DIP switches. (Each input to MOH output assignment settings, Mute settings, LINE 1/TEL level settings, and Phantom power ON/OFF setting)
• Supplied volume control covers prevent accidental operation of input knobs.
• Front operable bass and treble controls. Also front panel recessed knobs help to prevent accidental operation.
• Removable input/output terminal blocks facilitate installation and maintenance. Besides, RCA jacks provided for Lines 2 and 3.
• External remote volume control for speaker output level adjustment

Package includes:

• Mixer Amplifier
• Volume control cover: YA-920 x 5
• Removable terminal plug (2 pins) x 4
• Removable terminal plug (3 pins) x 2
• Removable terminal plug (4 pins) x 1
• Removable terminal plug (5 pins) x 1

For more information, please see Data Sheet
