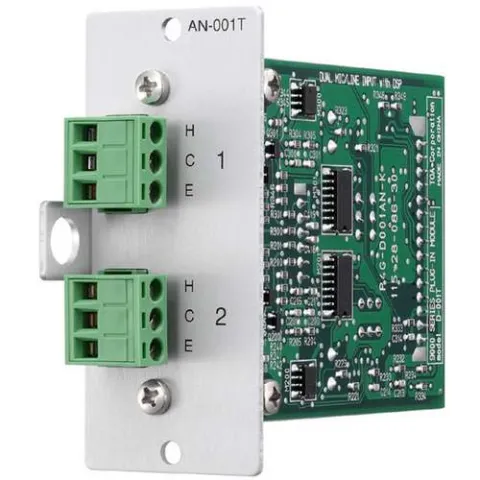

TOA AN-001T Ambient Noise Control Module for 9000/9000M2 Two Inputs Removable Terminal Block Uses AN-9001 Microphone

The AN-001T is a plug-in module of 2-channel ambient noise detector designed for use with the 9000 series mixer / amplifiers. It automatically adjusts the output volume in response to the change of ambient noise level. The AN-001T can handle input signals from microphone level (-60 dB) to line level (-10 dB) by controlling the gain in 9 steps. Phantom power (+24 V) can be supplied for condenser microphone use.

Features:

• Automatic adjusts output gain to compensate for changes in ambient noise level
• 2 microphone inputs with 24 V phantom power
• 14 preset gain ratios
• Each input can be assigned to control a specific output
• Only in combination with AN-9001 sensor microphone
• Max. 2 modules per chassis

Input module with 2 channels for ambient noise-controlled volume control. Connection of two symmetrical sensors and two 3-pin detachable screw connectors. Switchable phantom power for microphones.

Package includes:

• Ambient Noise Control Module
• Removable terminal plug (3 pins) x 2
• Module mounting screw x 2

For more information, please see Data Sheet
