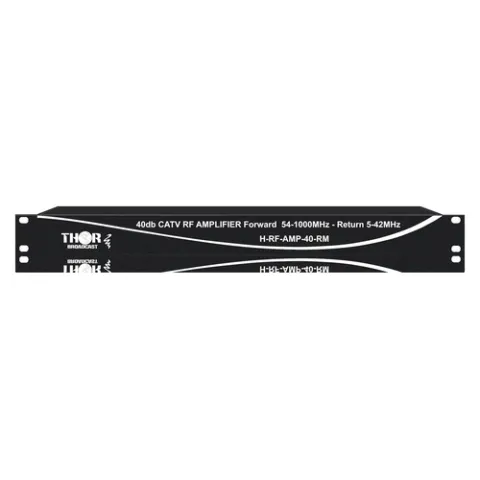

Thor Broadcast H-RF-AMP-40-RM CATV Distribution Amplifier for RF, 40 db, 54-1000 Mhz (Rack-Mountable)

This amplifier makes an excellent distribution system amplifier for heavily loaded MDU and broadband CATV and SMATV systems. Because of its extremely low-noise figure and low distortion, the H-RF-AMP-40-RM is ideally suited for use in larger networks where amplifier cascading is required.

Applications:

• CATV RF QAM over coax amplification
• The 40dB gain from off air antenna ATSC / DVB-T / ISDB-T
• Analog RF - NTSC / PAL video amplification

Features:

• High output level 40 dB
• High Voltage Surge Protection
• Broadband 54-1000MHz frequency range (Channels CATV 2-158)
• High Return Loss against interference
• Power LED indicator
• Optimum for Trunk Distribution
• Hybrid module design to obtain excellent quality
• Adjustable gain and slope for fine tuning systems
• -20 dB test ports for easy trouble shooting
• 60 dBmV high output level
• 40 dB gain for optimal carrier-to-noise ratio and superior picture quality
• ± 0.5dB flatness across band provides low distortion and excellent frequency response
• Employs state-of-the art hybrid push-pull technology for distortion-free audio-video quality
• Adjustable slope and gain controls for easy system balancing
• Easy-access controls and lowloss (-20dB) test point enable simplified setup and performance monitoring
• Shielded enclosure provides over 95dB RFI shielding performance reducing leakage and ingress
• Built-in lightning and line voltage surge protection protects the unit from damage
