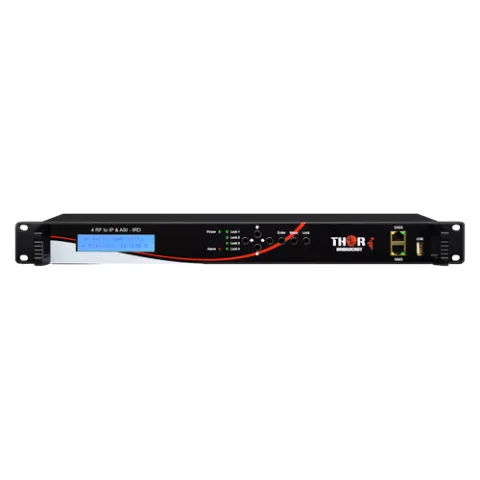

Thor Broadcast H-IRD-V4s 4 x Satellite RF Input with CAM Decoder IPTV Server with CAM

Thor Broadcast's Integrated Decoder, multi-input modulator is an all-in-one device which integrates demodulation, trans-mux and modulation in one unit to convert signals into RF output. It is a 1-RU chassis which supports 4 tuner inputs to receive signals from satellite. To meet customers' various requirements, the H-IRD-V4s is also equipped with 2 ASI inputs and 1 output with 2 separate ASI ports and 4 MPTS UDP IP ports. The output modulated signals are to be received by TV Tuners, STB's etc. The USB port is designed to record encoded video (TS) and save it in TS files in the USB Key or Hard Disks, and then the TS files can be played back through the USB port. The four CAMs/CIs and BISS modules can descramble the programs input from 4 Tuner inputs. Its pluggable structure design greatly facilitates the change of modules (demodulator) as needed.

Features:

• 4x Satellite RF Input with CAM and 2 ASI input ports
• Accurate PCR adjusting
• PSI/SI editing and inserting
• PID Remapping
• Excellent RF output performance index, MER≥42db
• 4 x DVB-C RF out
• 2 separate ASI&IP (4*MPTS over UDP) mirror 4 RF output
• 4 CAM can decrypt multiple programs from 4 Tuner inputs
• BISS descrambling
• Record encoded TS and playback TS files (*.ts) through USB port
• LCD display and keyboard, web management, updates via web and USB
