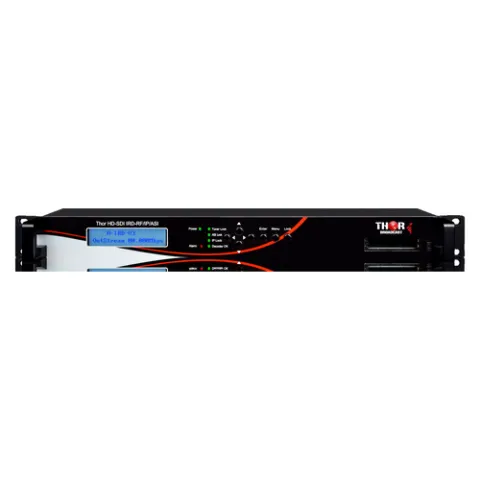

Thor Broadcast H-IRD-V3s Broadcast RF (Satellite DVB-S/S2) Decoder with SDI, ASI, IPTV Output

Thor H-HD-IRD series Integrated Receiver Decoders have several applications for decoding program content to broadcast quality video. Equipped with every major video signal output, including HD-SDI, Thor H-HD-IRD units can provide HD video to any display or professional video system. Also available are modern digital audio outputs on both optical Toslink and XLR connectors. Dolby AC/3 audio pass through is standard, and closed caption support for both 608 and 708 captioning systems is present. The V3 platform adds a front panel LCD video display for confidence monitoring, as well as an internal program multiplexer for combining content from both ASI and IP sources simultaneously. The web interface displays all available programs and corresponding PID's. Each program can be independently added to either the ASI or IP outputs.

All selected programs are multiplexed into a single MPTS output.  Additionally, the IP output can be configured for up to 32 SPTS single program stream outputs, each with different address and port settings. This allows the V3 system to be used as an intelligent ASI to IP or RF to IP Gateway with add drop and ASI video signal multiplexing capabilities. Combined multi program transport streams carried over IP can also be separated into their corresponding single program streams. The RF tuner can be configured for DVB-S2 signal source. Two CAS card slots allow decoded of encrypted programing.

Thor HD-IRD units can be used for converting broadband programing to uncompressed HD video, as well as multiplexing and retransmitting programs to both ASI and IP outputs.  Thor HD-IRD systems are a reliable and versatile platform for broadcast program decoding and TS protocol conversion.

In simple terms, this IRD is like a translator for different types of TV signals. It can take in signals from antennas, satellites, cables, the internet, and other sources, and then it can change them into different types of signals or video formats, so you can watch them on your TV or send them over the internet.

Features:

• RF / IPTV / ASI INPUT - All Audio-Video Outputs incl. HDSDI, HDMI, CVBS, Suppoty SD and HD formats up to 1080p/60
• Tuner - DVB-S/S2
• 10/100 Etherent for IPTV multicast or unicast TS MPEG2/4 Input
• H.264 and MPEG-2 Hardware Decoding to HD-SDI, HDMI, YPbPr, and CVBS Outputs
• Combine programs from both ASI and IP inputs to multiplexed ASI and IP Outputs
• ASI  input for Remultiplexer option to create a new MUX out as well 48x ip streaming spts out for routing and distribution
• Cam slot for tv programing description
• Front panel video monitor for confidence monitoring and troubleshooting
• Separate multiplexed program transport streams to SPTS IP outputs 32 Max
• Web server interface for secure browser management and full front panel interface
• Supports Closed Caption 608 and 708 systems, supports Dolby AC/3 Pass Through
