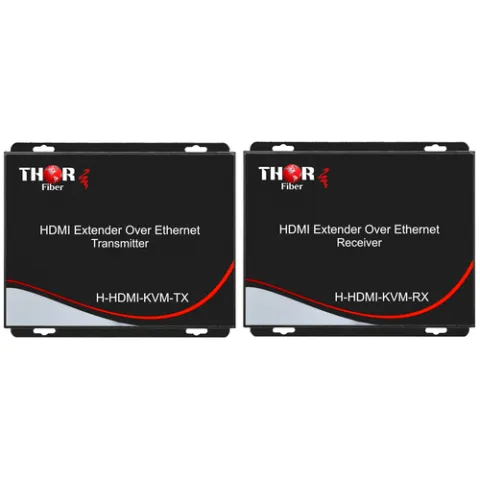

Thor Broadcast H-HDMI-KVM-Tx/Rx KVM (HDMI-Analog Audio+USB) Over IP Extender Transmitter and Receiver Kit Up to 200m

This H-HDMI-KVM-Tx/Rx (HDMI + KVM + 1 forward 3.5 audio + 1 reverse IR signal) set transmits HDMI audio and video signals up to 200 meters via CAT5e/6 cable. The Tx/Rx supports the TCP/IP network protocol, enabling transmission from one transmitter to multiple receivers through Ethernet switches.

It transmits HDMI signals and also features a local loop-out for live viewing. Additionally, it includes IR infrared return transmission, independent audio transmission, and remote control IR of the signal source.

The device also incorporates EDID data and built-in audio, enhancing the HDMI extender's compatibility over Ethernet.

It offers excellent transmission distance for copper with HD 1080p60, facilitating low-cost, easy installation using existing CAT LAN lines in any application.

The system is widely used in information systems, security monitoring, video conferencing systems, HD teaching systems, LCD splicing, LED fusion, and more.

Features:

• HDMI video maximum resolution 1920*1080P at60Hz with downward compatibility
• Integrated HDCP compliance engine to receive protected audio and video content
• EDID transparent transmission mode, automatically matching the signal source and display
• Transmitter has local loopout for HDMI
• 24bit-embedded digital audio
• Independent analog of 3.5mm audio
• Audio embedding/unembedding function
• KVM function (keyboard and mouse)
• Reverse IR infrared
• Point to point, point to multipoint, multipoint to multipoint transmission through ethernet switches (up to 255 points)
• Transmission distance up to 200 meters through CAT5e/6 cable
• Built-in ESD electrostatic protection circuit, simple to install, plug and play
• The equipment has a differentiated transmitter (signal source), and receiver (display end). Ships as a transmitter and receiver set.
