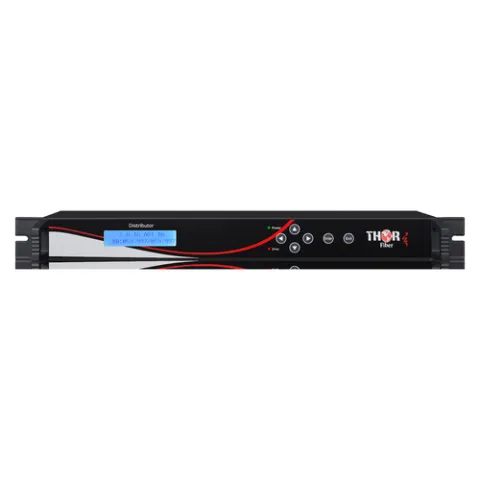

Thor Broadcast H-ASI-AMP 1x16 DVB ASI Splitter and Distribution Amplifier

2x8 or 1x16 ASI Splitter - DVB-ASI Distribution Amplifier

This unit features 2 DVB-ASI inputs, with 8 independently reclocked outputs per input. It can operate as:

• 2x8 : Each ASI input is split to 8 outputs (Input 1 - 8 Outputs, Input 2 - 8 Outputs)
• 1x16 : A single ASI input is duplicated to all 16 outputs (Input 1 - 16 Outputs)

This flexible design makes it ideal for broadcast and headend environments where robust and scalable ASI signal distribution is required.

Features:

• Supports DVB-ASI signals at any bitrate
• 16 reclocked outputs
• Minimizes jitter and regenerates a clean output signal
• Enables longer transmission distances
• Plug and Play - No Management

• One to sixteen Re-clocked and buffered output amplifier
• Very Low jitter due to signal reclocking
• LED indicator every ASI outputs work state
• Conforms to ASI Standard

Typical Applications:

• Headend Signal Distribution: Send one ASI output from a multiplexer or encoder to multiple modulators or processors
• Broadcast Facilities: Distribute ASI signals from a central playout server to various transmission or monitoring equipment
• Signal Testing and Monitoring: Deliver the same ASI stream to several test instruments simultaneously
• Redundant System Feeds: Feed identical signals into main and backup systems for reliability

Ideal for:

• Broadcasters
• Cable operators
• Satellite uplinks
• IPTV headends
• Government and enterprise video transport systems
