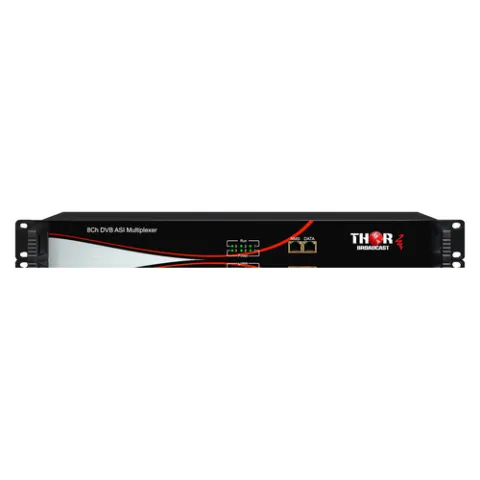

Thor Broadcast H-8ASI-MUX 8 Channel DVB-ASI Multiplexer

H-8ASI-MUX IP Multiplexer is Thor's multiplexing device for digital TV broadcasting head-end systems with TS output through 2 x 4 bi-directional ASI and 3 bi-directional IP ports. It can multiplex up to 4 ASI and 513 IP inputs to 5 MPTS, and the amount of ASI output should be based on the ASI input (the ASI port can be used as input or output). The H-8ASI-MUX IP multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering, and PCR adjusting. In conclusion, its high integration and cost-effective design make this device widely used in the CATV Broadcasting system.

Features:

• One or Two 4 ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
• IP input: 513 IP in over UDP/RTP (256x2 IP in thru GE1 and GE2, 1 IP i  thru Data port)
• IP output: 5 IP (MPTS) out over UDP/RTP (4 MPTS out thru GE1 and GE2,  MPTS out thru Data port)
• Support all input programs output bypass
• Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
• Huge buffer memory for saving the overflowing code stream
• Web-based NMS management
