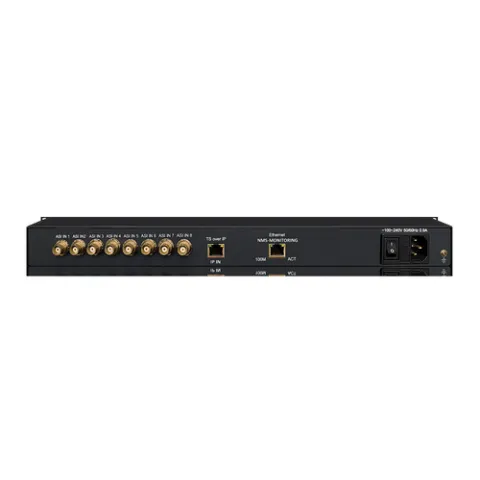

Thor Broadcast H-8ASI-IP 8 Channel DVB-ASI to IP Ethernet Gateway

The H-8ASI-IP ASI over IP Gateway is designed to carry up to eight standard DVB ASI transport streams over a gigabit Ethernet IP network. The unit can function as an IP stream transmitter, converting the ASI MPEG-2 transport stream into an IP stream for transport to multiple network locations. The IP transport stream can also be multi-cast to many different locations and devices. The signals can even be broadcast to computers running MPEG stream capture software such as VLC. The H-8ASI-IP can also be paired with the 2pcs H-IP-4ASI allowing seamless transport of up to 8 ASI signals over an IP network.

Features:

• Supports ASI to IP one-way conversion
• Supports one GE serial port, and inputs 1Gps data
• Supports UDP, unicast and multicast mode
• Supports maximum 8 channel ASI to IP conversion channels
• Maximum bit-rate in each channel is 108Mbps, the maximum total bit-rate is 800Mbps
• Keyboard and NMS operation
