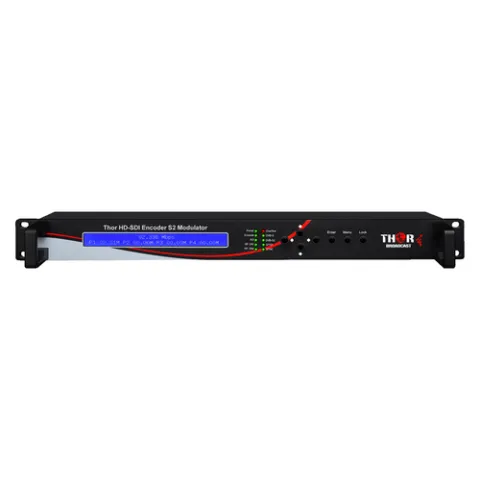

Thor Broadcast H-1SDI-DVBS2 1 Channel SDI to DVB-S2 Satellite Encoder Modulator (L-band RF Output)

Thor Broadcast's new HD-SDI Encoder and S2 modulator has been made to abide by DVB-S2 standards which is a generation broadband satellite telecommunication standard that integrates ASI and IP inputs and modulate them into a DVB-S/S2 RF output. This 1-RU Chassis supports BISS scrambling for easy signal distribution. It also comes standard with 4 ASI inputs (3 ASI are backups) and a 100mb. The S2 modulator can come with CID, this is optional, and must be ordered as such. Supports MPEG 2 and H264 with Lband output and low latency settings for easy to distribute Live Satellite video.

Features:

• MPEG2 SD/HD and MPEG4 SD/HD Encoding Module optional
• HD/SD-SDI inputs
• ASI input for external TS pass or multiplexing with encoded video and audio
• Support DVB-S /S2 output
• ASI output
• LCN support (Logical Channel Number)
• Output Frequency: 950-2150MHz; IF: 50-200MHz
• QPSK,8PSK, 16APSK, 32APSK, 8PSK-L, 16APSK-L, 32APSK-L Constellations
• Support RF CID setting
• Low latency
• Support BISS function
• Support 10MHz reference clock on the RF output or BNC
• Support Web NMS and front panel LCD and buttons control
