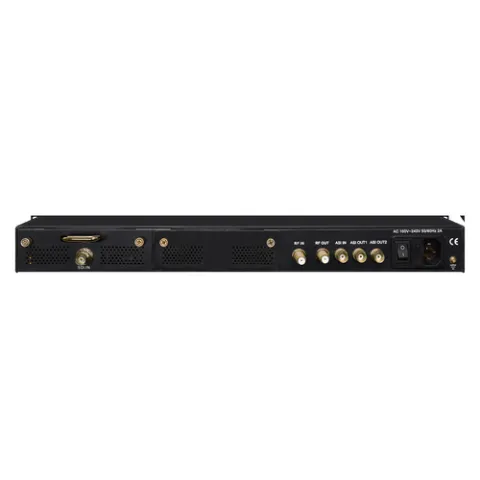

Thor Broadcast H-1SDI-ATSC-IPLL 1 SDI to HDTV ATSC Modulator

The Thor H-4HDMI-ATSC-IP encoder is a powerful new all-in-one device which integrates encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulating ATSC to convert V/A signals into RF output. It comes equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP port.

The signal source could be injected from satellite receivers, closed-circuit television cameras, Blu-ray players, and antennas. Its output signals are to be received by TVs, STB with corresponding standard of ATSC.

The encoder modulator are wildly used in public places such as the mall, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company's, schools, campuses, hospital

ATSC-IPLL: Low Latency Encoding Option

Unit model numbers that include "LL" indicate that model includes Thor's low latency encoding option. This new feature reduces the time delay between video input and encoded program output by more than 10 times. Standard model encoder modulator chassis systems typically have an encoding latency of 300/700-1200 ms depending on encoding parameters and output configurations. For many applications, adding approximately 1 second latency doesn't make a difference. For other applications, such as live events; 1 second delay is very noticeable and prevents modulation from being used in distribution systems. The solution to live video broadcast applications is the Low Latency upgrade option for the encoders.

Features:

• Broadcast HDSDI sources as North American ATSC Antenna & IPTV Channels.
• Input any SDI source up to 3G-SDI at1080p60
• ASI Input SPTS or MPTS up to 120 Mbps
• Fully Network Managed through browser NMS gui
• ATSC 19Mbps 8VSB RF Output 4x carriers
• IPTV Output Unicast or Multicast IGMP UDP, RTP, RTSP
• ASI Output with multiplexer cherry picking
• Integrates fully independent encoders with a multiplexer and modulator
• Modulates up to 4 adjacent 8VSB carriers compatible with ATSC format
• Supports full HD 1080p60 input & encoding from any HD-SDI digital video source
• Each encoder independently configured: supports all standard HDTV resolutions
• IPTV output on second network port in UDP, RTP,RTSP IGMP Multicast or Unicast format
• DVB-ASI output on mirrored BNC terminals for use in broadcasting systems
• Fully network managed device with all settings configurable through web browser
• Low Latency - 300/500/800ms delay via different modes - IP will always be closer to 800ms due to the decoding (these values are end to end, not just the encoding speed)
