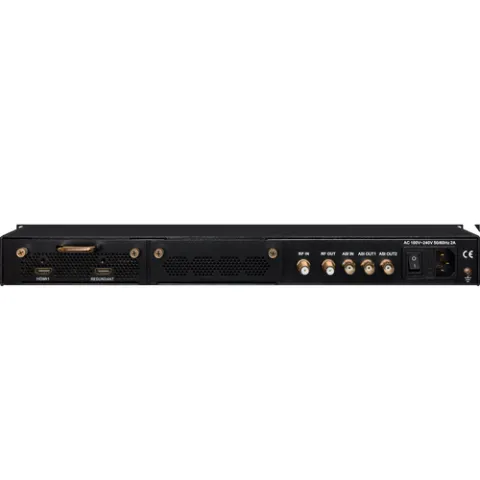

Thor Broadcast H-1HDMI-ATSC-IPLL 1 HDMI to HDTV ATSC Modulator

The Thor H-HDMI-ATSC-IP encoder is a powerful all-in-one device which integrates encoding (MPEG-2 HD, MPEG-4/AVC H.264) and modulating ATSC to
convert V/A signals into RF output. It comes equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP port.

The signal source could be injected from satellite receivers, closed-circuit television cameras, Blu-ray players, and antennas. Its output signals are to be received by TVs, STB with corresponding standard of ATSC.

With its various inputs available, encoder modulator are wildly used in public places such as the mall, market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company's, schools, campuses, hospital.

Features:

• ATSC 8VSB 19Mbps RF Output up to 4 Out
• IPTV Output Unicast or Multicast IGMP UDP, RTP/RTSP
• ASI Output with multiplexer cherry picking
• Any HDMI Input up to 1.5A at1080p60
• ASI Input SPTS or MPTS up to 120 Mbps
• Fully Network Managed through browser
• Integrates fully independent encoders with a multiplexer and modulator
• Modulates up to 4 adjacent 8VSB carriers compatible with ATSC format
• Supports full HD 1080p60 input & encoding from any HDMI digital video source
• Each encoder independently configured: supports all standard HDTV resolutions
• IPTV output on second network port in UDP IGMP Multicast or Unicast format
• DVB-ASI output on mirrored BNC terminals for use in broadcasting systems
• Fully network managed device with all settings configurable through web browser
• 300/500/800ms delay via different modes - IP will always be closer to 800ms due to the decoding (these values are end to end, not just the encoding speed)
