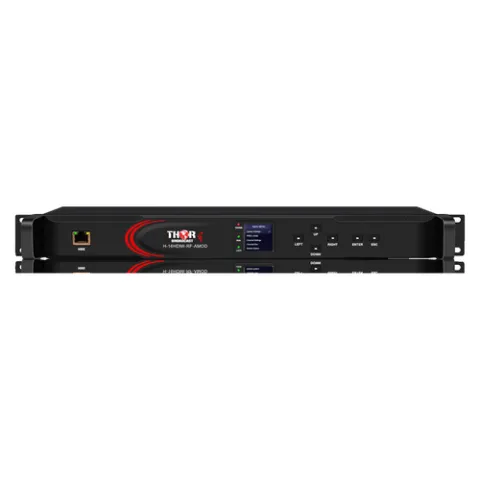

Thor Broadcast H-16HDMI-RF-MOD 16 HDMI Inputs - 16 Analog RF Out (NTSC) Agile Modulator

This a terrific solution for taking in up to 16 HD HDMI signals from any source and modulate them into any agile analog channels. Simple and easy way to distribute high definition signals to legacy TV distribution systems. Comes equipped with a pre-programmed channel list and its ability to setup any of those channels anywhere in the spectrum, operators can set up the modulator quickly and efficiently.

This is particularly a unique modulator because most Analog Modulators on the market require CVBS input, in most cases the HDMI sources would need to be converted externally to CVBS.

This device is doing it for you so you could use any SD/HD HDMI source, which then converts it internally to baseband video then modulates it to the Analog channels of your choosing.

This modulator is HDCP compliant and works with any HDMI sources and also comes with a network port for NMS, ethernet connection allows for remote access and management system.

Features:

• Converts 16 independent HD/SD HDMI video and audio signals to analog NTSC or PAL / SECAM channels
• Rack-mountable 1RU for easy insertion into any headend
• High picture quality thanks to the 16 HDMI inputs
• Internal fans - self-cooling system for long life span
• HDMI is HDCP compliant
• High power +50dBmv
• 16 Agile channels ouput
• NMS network GUI for management via RJ45 port
