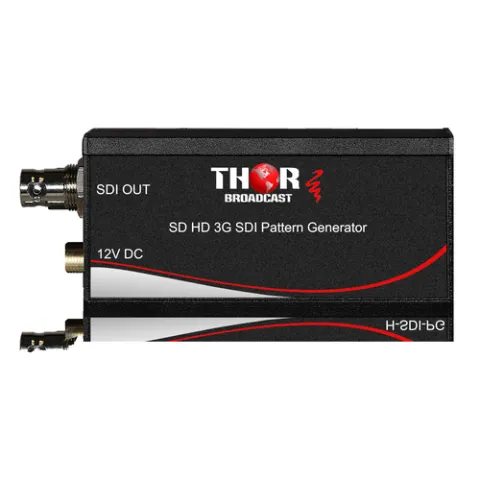

Thor Broadcast F-SDI-PG Mini SD/HD/3G-SDI Pattern Generator

The F-SDI-PG is a SD/HD/3G-SDI pattern generator, which supports 2970Mb/s, 1485Mb/s and 270Mb/s color bar pattern with moving circle and embedded 1 KHz audio.

Thor Fiber has an elite line of SDI over Fiber products; to make the use of testing these devices easier Thor has developed the SDI PG, SDI Signal Pattern Generator. This quick and simple device allows you to send color bars, a moving circle, and an audio tone over the SDI Tx Rx to the end location to view over a monitor for an ease use system to check if the fiber-line and SDI gear is ready to use.

Features:

• Supports 2970Mb/s, 1485Mb/s and 270Mb/s color bar pattern with moving circle and embedded 1 KHz audio.
• Compliant with SMPTE-424M 3G-SDI, SMPTE-292M HD-SDI and SMPTE-259M SD-SDI standard, supports 2970Mb/s, 1485Mb/s and 270Mb/s
• Supports NTSC and PAL, which can be switched by button on the front panel
• Supports the most popular SDI format, which can be switched by button on the front panel
• Supports 1080P at59.94/29.97, 1080I at59.94, 720P at59.94, 525I at59.95 format of NTSC
• Supports 1080P at60/30, 1080I at60, 720P at60, 625I at50 format of PAL
• Supports embedded 8 channel audio signal of 1 KHz sine wave
• Supports NTSC/PAL and SDI format indicator led on the front panel
• 12V DC power supply, consumption: 1.5W±10%
• Dimensions: 93.2mmx46.2mmx29.6mm
