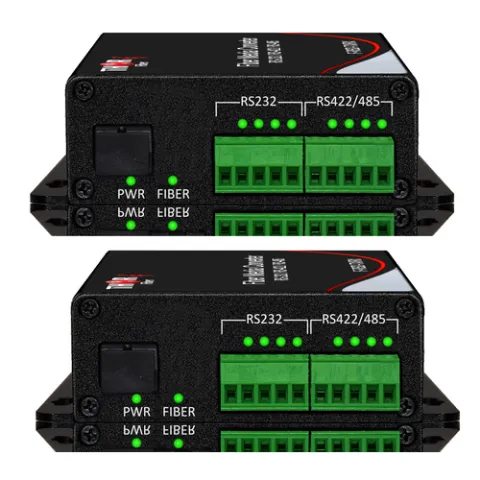

Thor Broadcast F-RSD-A/B-TXRX Serial RS-485, RS-422, RS-232 to Fiber Transmitter and Receiver Kit

Thor Fiber now has a line of Multi-Serial (RS-232 / RS-485/ RS-422) to Fiber Optic Converters that transmit a serial protocol over fiber. Fiber Transmission extends a serial signal up to 120km.

These units support single-mode and multimode over a single fiber. The serial port interface is a single terminal block connector field wiring.

These units automatically detect the signal baud rate of the connected serial device that ranges from 300bps to 115.2Kbps baud. It also automatically adjusts to changes in the connected device's bound during operation without reconfiguration or interruption of service.

It supports Chassis, Wall-mounted, and DIN rail mount for quick and easy installation.

Features:

• Point-Point Bi-Directional Transmission
• Zero-Delay automatic forwarding
• RS-232/ RS-485 / RS-422 to fiber automatic baud rate detection
• Baud rate :300bps to 115.2Kbps
• Protocol Asynchronous Serial
• Supports multi-mode, single-mode and single-fiber with FC/ST/SC connectors
• 20Km (40 80 or 120Km if needed )  Multi-mode up to 3000 feet
• Hot-pluggable
•  Chassis avaialble, Wall-mounted or DIN-Rail installation
• supports 1500W surge protection and 15KV ESD protection
• External power supply
• Wide Range Operating Temperature Supports: -40 to 70°C
• Supports Input Voltage 9 ~ 48VDC
• Supports Reverse Polarity Protection
