Thor Broadcast F-RF-1310-Tx-8mW 1310 nm CATVRF Over Fiber Transmitter 45-870 MHz with +8db Output Power

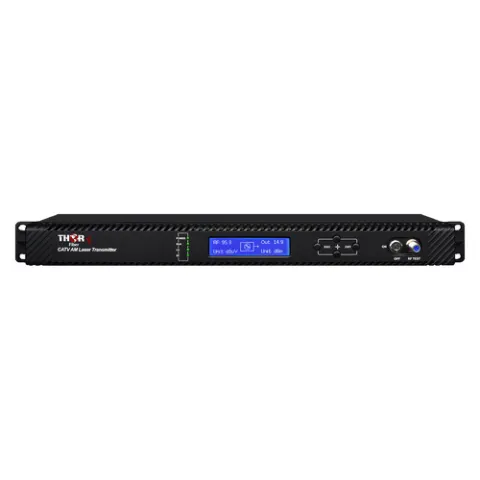

1310 nm - 8 mW fiber optic transmitter for Television RF (Radio Frequencies) from 45-870 MHz. Directly converts any incoming RF signal within this band to optical RF. Transports all channels and programs over one fiber. Can be used for point to point, or combined with PLC couplers and fiber optic splitters for point to multipoint applications. Outputs Industry standard RFoG (RF over Glass) signals that can be accepted by most fiber optic RF receivers from other manufacturers. Easy to read front panel LCD provides information and alarm data, and simplifies configuration. This system features a highly linear DFB laser with automatic adjustment circuitry with Automatic Gain Control.

Transmitter can be used with any or Thor Fiber optical RF receivers.

Features:

• 8 mW Optical Power Output from sensor feedback controlled laser system
• Transports entire 45-870 MHz band even with full channel lineups
• Create high security "Fiber Breaks" to eliminate coax signal return path
• Automatic Gain Control (AGC) manages RF level with no adjustment needed
• Compatible with all Thor RFoG CATV series optical receiver systems

NOTE: it is very important to interface unit with SC/APC - Angle Polished Connector to avoid any light reflections.

If your fiber is terminated with the SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.
