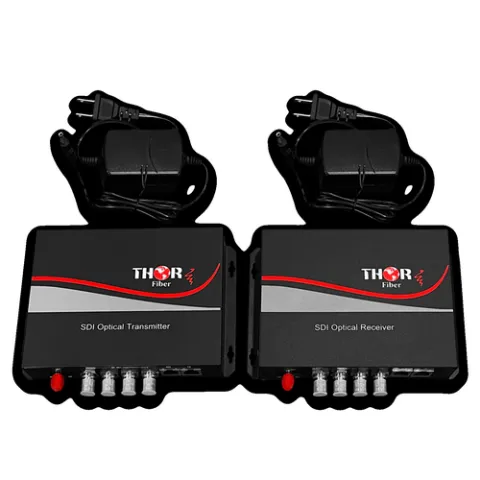

Thor Broadcast F-M4SDI-ET-TxRx 4 HD-SDI + 10/100 Ethernet +RS485 + Audio Over Single Fiber Transmitter and Receiver Kit

The Thor Fiber F-M4SDI-ET-TxRx is a compact power house that will allow any user to transport 4 signals channel of 1.485Gbps HD-SDI Serial Data Interface uni-directionally while simultaneously transmitting one Fast Ethernet 10/100Mb/s data. Furthermore this Thor Fiber Kit of Transmitter and Receiver will send RS485 in reverse for easy control over the kit. This sturdy unit creates an easy drop environment for users that require HD-SDI and Dual Fast Ethernet across any application and even allows additional AUX Cards which can allow a plethora of other options such as RS232 and RS422, and even capable of carrying external analog audio instead of the SDI embedded audio. Thor Fiber has an excellent reputation for high quality and low cost products to help complete your project on time, in a loss free high quality kit that will ensure you stay under budget. Commonly used in security applications, live performance environments, video surveillance, SDI distribution and control in any environment.

Features:

• SMPTE-292M HD-SDI standard, supports 1.485Gb/s
• Transmitter: Four SD/HD-SDI input (BNC), One Fast Ethernet interface(shared 100M bandwidth, supports port-based VLAN)
• Receiver: Four SD/HD-SDI output (BNC), One Fast Ethernet interface(shared 100M bandwidth, supports port-based VLAN)
• One auxiliary card, which can be 1-channel bi-directional audio, or two-channel unidirectional audio, or 2-channel contact closure input/output, or 1-channel bi-directional RS422/RS232 channel
• One bi-directional RS485 channel, half duplex, up to 115.2Kb/s baud rate
• Supports 1080P at29.97, 1080I at59.94,720P at59.94
• Integrated cable equalizer
• Embedded ESD and surge protection circuit to prevent damage from static and thunder
• NOP (No optical signal) alarm indications, output status indicator and input lock indicator
• APC circuit for stable optical power
