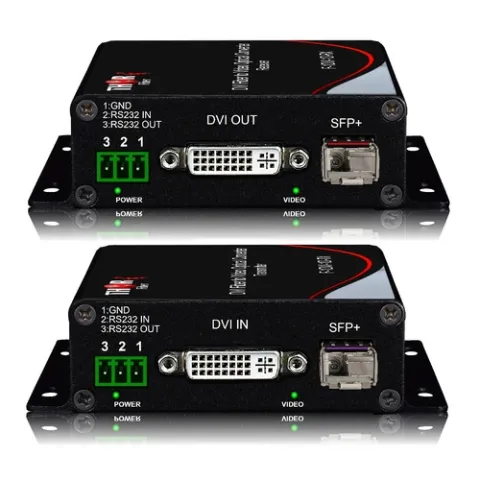

Thor Broadcast F-DVI-TxRx DVI Over Fiber - Video Optical Converter

A F-DVI-TX/RX DVI to fiber extender transmits high-definition video and audio signals over long distances using a single optical fiber, but it also supports bi-directional RS232 data transmission. This additional feature allows for the extension of control signals, such as keyboard and mouse input, to the remote location, making the system more versatile.

How It Works:

The device takes the DVI output from a source (such as a computer or workstation) and converts it into a signal suitable for fiber optic transmission. Along with the video and audio data, RS232 control signals (such as keyboard and mouse inputs) are sent over the same optical fiber. At the receiving end, the signal is decoded back to DVI, and the RS232 data is used to extend control functions, enabling the remote user to interact with the system as if they were directly at the source.

Practical Applications:

• Conference Rooms: These extenders allow a computer or media device to be connected to multiple remote displays while also enabling remote control via keyboard and mouse, which is ideal for presentations or collaborative work.
• Digital Signage: The RS232 data extension can be used to remotely control media players or screens, allowing easy updates and adjustments without needing to be physically near the equipment.
• Home Theaters: For home theater setups, the extender can connect a DVI-equipped device to a projector or screen while also allowing users to control the system remotely, perfect for setups with hidden or hard-to-reach equipment.
• Broadcast and Control Rooms: In broadcast environments, it enables long-distance transmission of video/audio signals while also supporting remote control of equipment, such as switching or adjusting settings via keyboard or mouse.

The combination of video, audio, and RS232 data transmission over a single optical fiber makes these extenders highly efficient, providing both high-quality media transfer and remote control capabilities. The plug-and-play design and power supply make installation simple and hassle-free, making it a reliable solution for various professional and commercial applications.

Features:

• DVI1.0, maximum support 1920*1200 at60Hz
• Transmission bandwidth:10G
• Transmission distance: 10km
• HDCP compliant
• RGB4:4:4 YUV4:4:4 YUV4:2:2 YUV4:2:0
• EDID transparent transmission, downward compatibility with all systems 1920*1200 at60Hz
• Built-in low jitter PLL, RMS jitter 0.03UI, high-speed transmission stability and reliability
• Reverse transmission bandwidth 250M (EDID, HPD)
• HD non-compression transmission
• Video delay <2ms
• RS232
• Simplex, full duplex (RS232), half duplex
• Plug and play, setup in minutes

Applications:

• LED splicing
• Video conference systems
• Monitor testing and burn-in
• Public Video Systems
• High quality multimedia video conference display (Video Conference)
• Municipal command building center
• Substation control room
