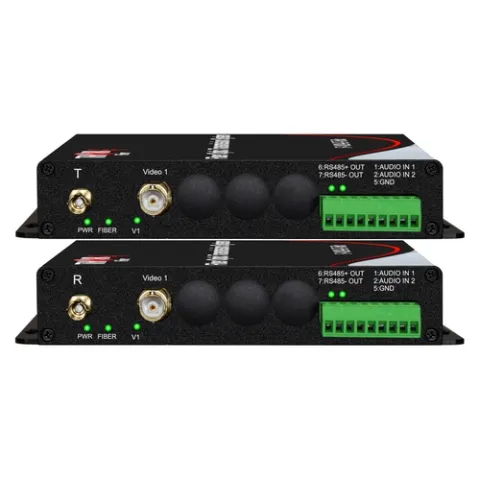

Thor Broadcast F-1V2A-1D-TxRx 1 CVBS Video, 2 Unbalanced Uni-Directional Audios, Reversed RS485 Data Over 1 Fiber Transmitter and Receiver Kit

Analog Baseband Composite CVBS Video, Analog  Audio, and RS485 Serial Data

These units are easy to control via data RS485 and are plug and play optical converters for helping to send video & audio longer distances. Sending Video and audio using copper wires for a longer distance than 100 feet is very unpractical. Fiber optic cable, Single-mode or multimode, helps tremendously. There are many cameras or other video devices like VCR, DVD players, Set Top Boxes still using analog Audio/Video interface. Thor unit has a video BNC 75 ohm interface, for every video, there is double the amount of audios which can be used as single-ended or differential-balanced. For example, 1 video has 2 audios, 2 videos have 4 audios, essentially you have a video port with left and right audio. In addition, the Transceivers have an RS485 serial Data interface, it allows you to send commands to multiple camera's or other video sources from the headend - receiving location. The kit contains 2 pcs, Transmitter and Receiver, each comes with 12VDC power supply. The transmitter needs to be located by the Video / Audio source like a camera, the receiver needs to be located by the monitor or recording device. Units can be used for timing applications to send CVBS black burst over fiber or sync pulses over fiber.

Features:

• ST/PC fiber connector
• BNC 75 ohm Video Connector
• Terminal block for balanced and unbalanced audio
• Terminal block for RS485 Data
• Video supports NTSC, PAL, SECAM
• Point to Point transmission up to 20Km
• Singlemode or multimode fiber supported
• LED indicators for Power and Optical ink
• Supports tri-level sync pulses
• 24-Bit Digitized Audio
• 10Mhz Video Bandwidth
• Audio 600 Ω Unbalanced, -Bandwidth: 20Hz ~ 20KHz
• Audio Bit Resolution -24-bit Signal-to-Noise Ratio(SNR):> 80 dB
• 10-bit digitally encoded broadcast quality Video
• 12V DC Portable Power supply included
