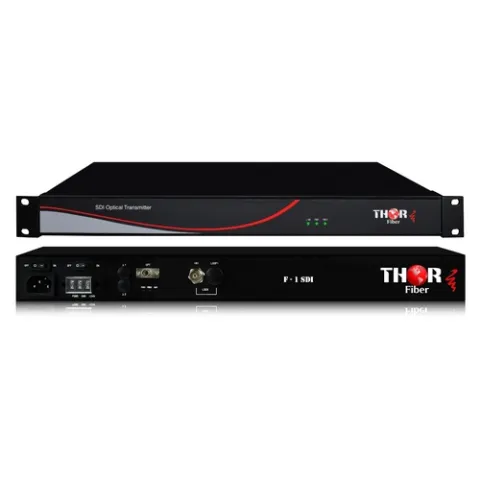

Thor Broadcast F-1SDI-3G-TxRx-RM 1 SD/HD 3G-SDI Over Single Fiber CWDM Uncompressed Transmitter / Receiver Kit (Rack-Mountable)

Thor Fiber uncompressed 3G-CWDM standard configuration Fiber Optic Transmitter and Receivers for Serial Digital signals up to 3G-SDI running at 3.0 Gbps.  This is an 1 Channel system based on a standard 40km platform. No configuration or management is needed, as the system automatically adjusts to any input signal type regardless of bit rate or protocol. Easy to read LED indicators for Input Signal Detect and optical link are present for all channels. Units come standard with ST/PC fiber connectors and a 1RU 19" rackmount form factor to keep your rack clean. Simplified easy to use plug and play units mean that anyone can deploy these in no time. Commercial grade intricate parts means these will work for years without hassle.

Thor uses high quality DFB lasers for maximum reliability and distance, with off the shelf models functioning up to 50km when used with single mode fiber.  F-SDI systems will transport any digital signal from 1 Mbps to 3.0 Gbps independent of protocol or standard.  These systems can be used for anything from 3G-SDI (SMPTE 424M) to multi rate DVB-ASI down to single program at low bit rates.  F-SDI units incorporate industry standard internal CWDM modules for compatibility with similar systems from other manufacturers, such as Python™ systems.  This standardization allows Thor F-SDI equipment to be used in conjunction with other commercial off the shelf transmitters or receivers from other vendors, including Python™ series equipment.  All outputs are automatically re clocked to eliminate problems with jitter and to allow for long cable runs out of the receiver.  Applications range from live broadcast and Electronic News Gathering to government and scientific research applications.

Features:

• Compatible with any Serial Digital Signal up to 3.0 Gbps
• Standardized channels for both CWDM bands for compatibility with Python™ systems
• Passes SDI embedded audio and all ancillary data
• Input equalization and reclocking for SDI video on buffered outputs
• Real-time status LED indicators for troubleshooting and monitoring
• DWDM systems available by request for higher density system
