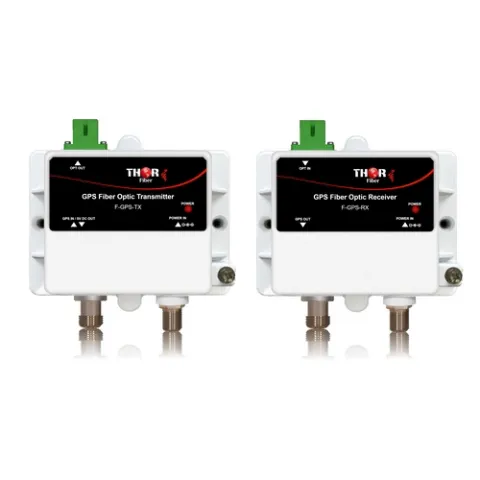

Thor Broadcast F-1GPS-TxRx 1 GPS Over Fiber Transmitter / Receiver Kit

The Thor Fiber portable F-1GPS-TX/RX systems are available to support the remote location of industrial GPS antennas. These kits are assembled and tuned to the unique requirements of each application. Thor GPS over fiber systems are an excellent solution for distance limitation between maritime or government GPS antennas and radio signal receiver equipment. Typically any sensor equipment or tuning hardware such as universal time receivers or GPS navigation gear must be installed and located within 100 ft of the antenna system. Most modern industrial type systems require antennas with a clear view of the horizon to function properly. In the case of large ocean going vessels, underground military installations, or large buildings or structures(metropolis); it can be a challenge to install GPS equipment within 100 ft of a suitable antenna location. Thor solves this problem by extending the distance to over 20km by converting the GPS signal from the antenna's coax to fiber optic cable.

GPS reference timing signals are widely used to synchronize cellular base stations.

GPS systems typically consist of an active rooftop antenna, a GPS receiver and a length of coaxial cable to connect them. Common challenges arise when the distance between the rooftop antenna and the cellular base station equipment (usually in the basement) is greater than 300 ft. Coaxial cable runs over 300 ft are not practical for most GPS receiver systems, so a fiber optic link is required at such distances, and Thor Fiber optic links are some of the most trusted, cost-effective links in the industry.

Features:

• Supports all GPS frequencies internationally
• Supports L1 at 1575.42 MHz, L2 at 1227.60 MHz, L3 at 1381.05Mhz, L4 at 1379.913Mhz and L5 at 1176.45 MHz, L6 at 1278.75Mhz, L7 at 1267.6Mhz GPS bands
• Extends the range between GPS antennas and equipment to over 20 miles
• Fiber links are immune to RF interference problems associated with coax
• Ideal for broadcasting towers, cell sites, military installations, and large ships
• Provides a fiber security break and insulates from lightning strikes
• 1 GPS input
• 1 Independent fiber optic ouput SC/APC
• N Female Type RF Connector
• Portable power supply
• Supports high level of optical split and RF split for flexible routing of GPS for small cells and extended base station sites
• Simple to install - no adjustment
• Minimal signal loss and degradation over very long cable runs upto 20km.
• Provides a highly secure tamper-proof GPS over fiber connection between antenna and receiver.
• Interference free link through noisy environments, the optical signal is unaffected by electrical noise.
• Electrical isolation between antenna and recever protects against lightning strikes and electrical surge
• Selectable GPS antenna powering voltage
• Supports all L2 & L1& L5 GPS bands
• The transmitter receiver Kit comes with 110-220V AC to DC power supply
• GPS base stations with long antenna cable runs
• Run the GPS carrier to multiple GPS timing boards throughout a company
• Run GPS throughout an aircraft
• Satisfies the requirement of supplying multiple GPS receivers with a carrier, spread over a great distance
• For R&D facilities, supplies a GPS carrier to a multitude of engineers and technicians with only one antenna on the roof.
• DAS, WiMax, Satcom, LTE over fiber

Tt is very important to interface unit with SC/APC - Angle Polished Connector to avoid any light reflections.

If your fiber is terminated with the  SC, ST, FC /PC flat connector, you need to use an optical jumper from PC type to SC/APC for proper conversion.
