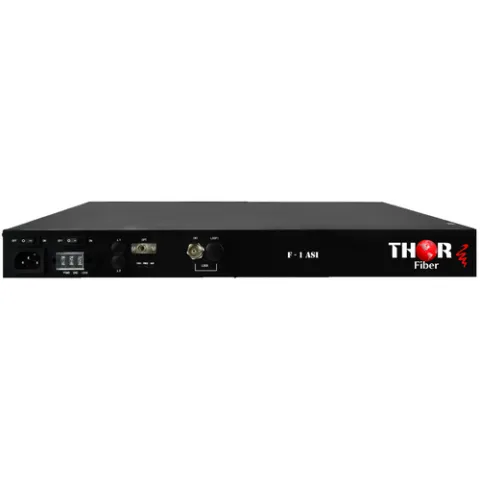

Thor Broadcast F-1ASI 1 Channel DVB ASI Over Fiber Optic Transmitter / Receiver Kit

The F-ASI is a copper to fiber media adapter for both DVB-ASI and SD-SDI signals. This is the standard ASI over fiber transport unit for the broadband and broadcast industry. The F-ASI units are used in various applications for extending ASI over fiber as well as SDI video signals over singlemode fiber. ASI or SDI fiber optic transport is based on the conversion of the transport streams digital band to an optical carrier signal which can be broadcast at distances of up to 120 Km.

The standard input for the ASI or SDI inputs is a BNC connector. The signal channels can carry either type of serial signal over the fiber. The signal is modulated onto a single fiber for transport. The signal is then demultiplexed at the receiver. The F-ASI series provides up to 8 fully independent DVB-ASI/SDI pipes. The F-1ASI features easy to read diagnostic LED's for system and link status.

Features:

• General Purpose Copper to Fiber Serial Converter
• Transport ASI over Fiber or SD SDI over Fiber
• 0.5 Mbps to 270 Mbps Bandwidth
• 1 Copper Port: BNC with Equalization
• 1 x Singlemode or Multimode Fiberoptic Port
• up to 110km Transmission Range (20km Standard)
• Single Fiber Transmission
• Plug-n-Play
• Both Compact and Rackmount Units Available
• Applications include extending video signals over fiber
• Common markets include broadband and broadcast industries
