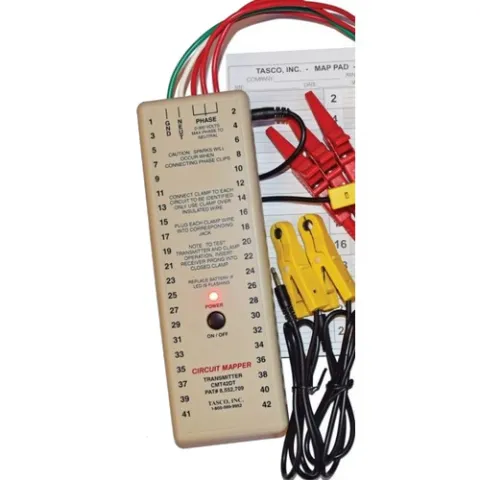

Tasco CMT42DS Circuit Mapper System with 42 Yellow CT Clips

The revolutionary Circuit Mapper System from TASCO maps all branch circuits quickly and easily. Poorly labeled breaker panels are an unfortunate fact of life, but they don't have to hold you up. The Circuit Mapper System enables you to work quickly and accurately. This branch circuit identifier completely maps all circuits and breaker connections from a single breaker panel. Its digital output shows the complete circuit you are testing. You can map a full breaker panel all at once with this branch circuit tracer.

Forget about the LEDs and confusing displays that come with a conventional electrical circuit tracer. The CMT42DS maps a complete 42-circuit breaker panel common in most new residential or light office space. The Circuit Mapper System has several clear benefits over a conventional electrical branch circuit identifier. It can save immense amounts of time and will quickly pay for itself. The unit eliminates the mistakes that can occur with a competing electrical wiring locator.

How It Works

Each of the clamps connected from the transmitter around a conductive circuit induce a coded signal modulated at 166KHz and 250KHz.  There is a unique code for each of the branch circuits.  The receiver is able to measure the signal on a conductor when the probe is inserted to the outlet.  Because of the unique frequency and code of the transmitted signal, the receiver is able to determine the strongest signal at any given outlet or lightswitch and display that reading to the user.

In a nutshell, the TASCO Circuit Mapper System will enable you to do better, more accurate and more efficient work. In addition, you can count on TASCO to provide unrivaled support for this electrical wiring tracer. Help is just a phone call away, and one call is all it usually takes to solve a problem. In the unlikely event that the Circuit Mapper System isn't the right tool for you, TASCO will take it back with no hassles. TASCO has provided dependable tools to the trade since 1986.

Features:

• First-of-its-kind device that maps branch circuits of wiring systems concurrently with a single transmitter and receiver.
• Eliminates the need to trace individual circuits one at a time, greatly improving branch circuit tracing efficiency.
• Provides a full digital LED readout - no more manual adjustments.
• Features a non-contact setting which allows signals to be read through wiring insulation, without direct electrical contact.
• Designed for use on both energized and dead systems.
• Accomodate up to #6AWG wire using yellow CTs (included).
• Additional CMT2R receivers can be used simultaneously (sold separately).

For more information, please see Product Flyer and Manual
