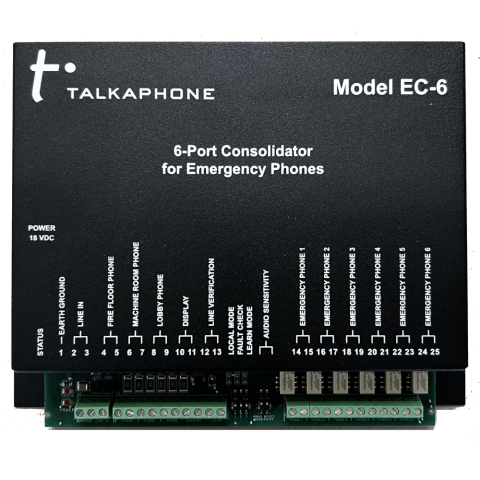

Talkaphone EC-6 6-Port Analog Call Station Telephone Line Consolidator

6-Port Analog Call Station Telephone Line Consolidator

Model EC-6 Consolidator allows up to six (6) Analog Call Stations to utilize one (1) phone line. Also, it can be used to create an internal communication system without need for any telephone lines.

Features:

• Connects up to six (6) analog call stations
• Facilitates communication with with local and remote answering points
• Dedicated phone ports for lobby and machine room
• Auto-answers inbound calls
• Programmable phone line verification check
• Dimensions: 8.25" W x 6.25" H x 1.75" D (210 mm x 159 mm x 45 mm)
• Weight: 3.2 lbs. (1.5 kg)
• Mounting: Integrated mounting brackets. Designed to wall mount.
• Operating Temperature: 32°F to 90°F (0ºC to 32ºC)
• Humidity Range: 5% to 95%, non-condensing
• Power: 120 VAC (UL Listed power adapter included)
• Power Consumption: 0.1125 A (maximum)
• Connections: Terminal blocks

For more information, please see Data Sheet and Installation and Operation Manual
