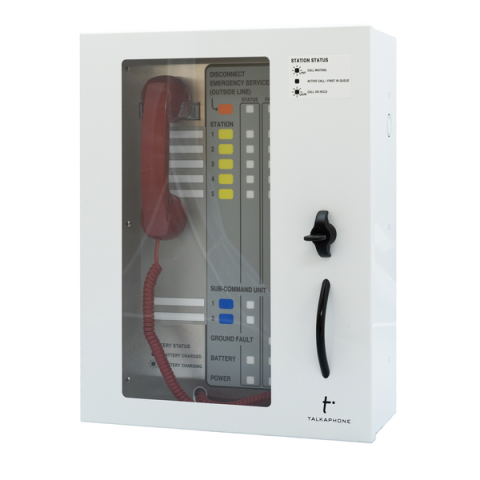

Talkaphone AOR-5-DKL Area of Refuge Fixed 5-Station Analog Command Unit with Door and Keyed Latch

Talkaphone's new fully integrated fixed station analog command units accommodate up to five (5) ADA-compliant Area of Refuge stations. The units provide both audible and visual indications for an incoming call - LED lights indicate the calling location. AOR command units are fully compliant with the NFPA 72 (2022) §24.10, IBC (2021) §1009, ICC A117.1 (2017) Ch. 7, and ADAAG (2010) Ch. 7.

Features

• Automatically and continuously supervises for integrity (opens, shorts, and system ground fault), low battery backup, and 24VDC input power fail alerts by relay output to an addressable fire panel, LED, and sounder
• On-site calling requires no outside phone line
• Off-site calling requires one (1) analog phone line (PSTN line)
• Solid LED indicates active call. Flashing LEDs indicate stations that are waiting to be answered. When first call is completed, second call is automatically placed and Command Unit rings. Multiple calls are placed in queue on a "first-in, first-out (FIFO)" basis.

This Command Unit is secured behind a door and keyed latch for use by authorized personnel.

For more information, please see Data Sheet
