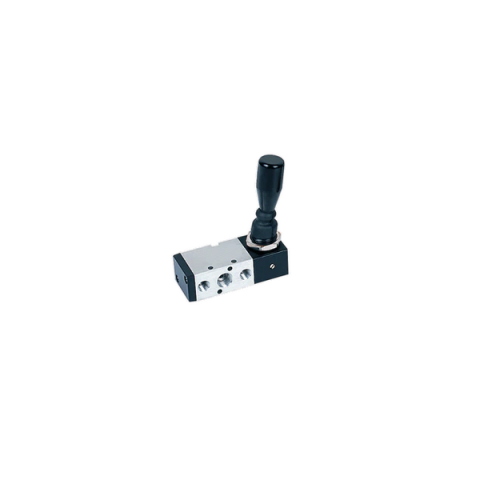

STC 4H230P-M Hand-Operated Pneumatic Valve with Three Position Lever Pressure Center 1/4" NPT (1/8" Exhaust Ports) Anodized Aluminum NBR Detented

The 4H230P is a manual pneumatic directional valve with a four-way operation & five ports (P = Pressure, A = Outlet 1, B = Outlet 2, EA = Exhaust for port A, EB = Exhaust for port B). Four-way, three-position, pressure center valves are generally used to stop a double acting cylinder in partial stroke, with pressure on both ends of the cylinder at the center position.

This valve is available with either a Detented (-M) or Non-Detented (-S) lever.
