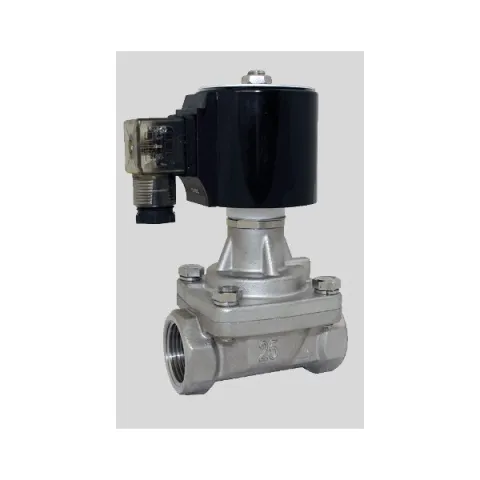

STC 2LS250-1-3-D 1" NPT Direct Lift Piston Stainless Steel, 110VAC

1" NPT Normally Closed Direct Lift Piston Stainless Steel, 0 DIF, 110VAC 2W350C Coil, DIN

Features:

• 2-Way, Normally Closed
• Semi-Direct Lift Piston
• Body: 304 Stainless Steel
• Seal: PTFE
• Operating Temperature: 23 to 356°F
• Ambient Temperature: 23 to 110°F
• Operating Pressure: AC: 0 to 145PSI; DC: 5 to 72PSI
• Coil Power: AC: 28VA; DC: 30W (1/2" & 3/4"); DC: 35W (1" & Larger)
• Coil: H Class, IP65
• Services: Air, Liquid, Oil, Water, Steam, Vacuum
• Cv = 12; Orifice = 25mm
