Overview

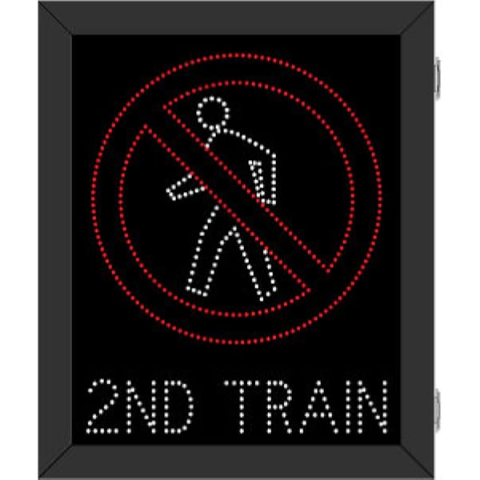

This DOT Series R9-3 No Pedestrian Crossing Symbol | 2ND TRAIN sign is a direct-view LED design that illuminates when activated and blanks out when deactivated. Outside cabinet dimensions are 35.000" x 29.000" x 6.500".
The sign is engineered with super-bright LEDs for optimal viewing in a roadway application. Conformal coated circuit board protects electronic components from outside elements and the contrasting polycarbonate sign face enhances message readability. The sign features automatic photo-dimming which adjusts the message brightness to the ambient lighting conditions.
It is housed in a corrosion resistant, extruded aluminum cabinet with welded seams; NEMA-4X rated/IP66. Optional hood available. The cabinet features 1/8" thick impact resistant polycarbonate face. Standard cabinet finish is black powder coat; custom colors available. UL/cUL listed. Suitable for wet locations.
Amps At 120V: 0.25
