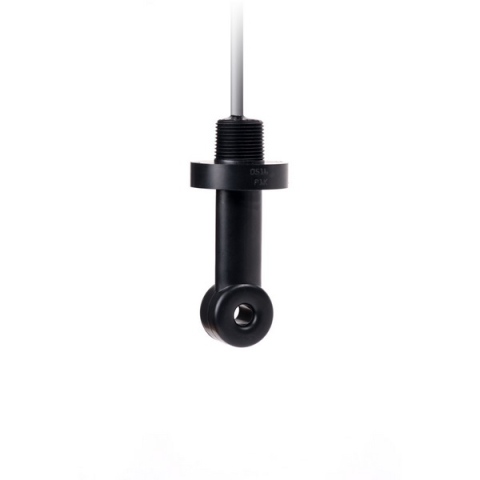

Sensorex ITCS3020/MB TCS Series Smart Toroidal Conductivity Sensor, 485 Modbus Output, 0-100 mS Range

The Sensorex TCS series toroidal (inductive) conductivity sensors feature wide measurement ranges and dependable toroidal technology over the range 0-2000 ms/cm. Resistant to corrosion, coatings, and fouling common to contacting conductivity sensors, the TCS series is designed for a long and trouble-free service life.

Noryl material of construction has a wide solvent tolerance and temperature stability to 105 degrees C. All models can be submersed by utilizing the 3/4" MNPT threads on the sensor or installed inline using the FC95C flow cell. A Pt 1000 RTD ATC element is built into the TCS sensor. All TCS sensor models are supplied with 20 ft long 4-conductor cable.

The Modbus models provide condutivity and temperature along with calibration data and sensor name.

Features:

• Noryl body resists coating, corrosion and fouling in many common applications
• Comes preset for your prefered communication but can be modified in field using free Sensorex software
• Threaded 3/4" NPT for submersion mounting
• Flange for inline mounting (order flow cell separately)

For more information, please see Specification Sheet and Manual
