Seametrics WMP101-102 WMP-Series 1" Plastic-Bodied External Powered Magmeter

The WMP-Series is a full-bore, plastic-bodied electromagnetic flow meter designed for flow and usage monitoring applications in 1 inch pipe. The polypropylene flow tube offers corrosion resistance to a wide range of chemicals and fertilizers. It is light weight and easy to install or remove from the pipe for inspection.

With no moving parts, the magmeter permits unobstructed flow, minimizing flow disturbances and straight pipe requirements. The WMP-Series can be used in piping configurations where there is little space between the meter and an elbow or valve. The WMP-Series is resistant to wear from sand and debris found in ground or surface water. Since there are no bearings or propeller to wear out, maintenance and repair costs are kept to a minimum.

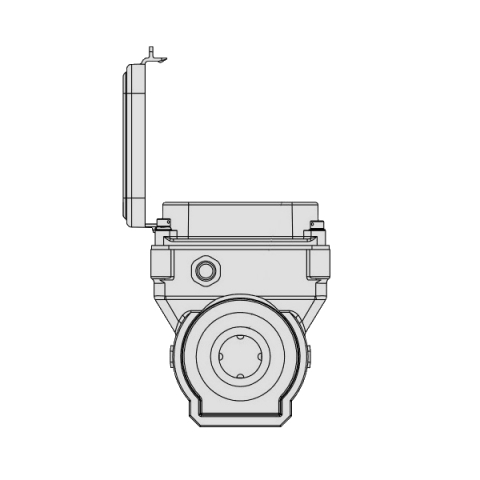

A hinged polyethylene cover is included that protects from dust and UV rays, while permitting easy access to the flow rate and total display. The electronics housing can be fitted with cross-drilled screws and seal wire for tamper-evidence. Flow rate and total can be displayed in a variety of units, customer-selected and factory-set.

The WMP101 is externally powered via a 5-pin connector cable (20 ft/6 m) which also provides pulse output for use with a variety of Seametrics and other displays and controls for remote reading, data logging, pulse-to-analog conversion, and telemetry applications.

In the event of DC power loss, or when changing batteries, the WMP will retain internal settings and flow total.

Features

• No moving parts
• Minimal straight pipe required
• Battery or externally powered
• Built-in rate & total indicator
• Corrosion resistant
• Pulse output (WMP101 only)

Applications

• Industrial wastewater discharge
• Gray water
• Well monitoring
• Irrigation
• Mining

Options

• Tamper-evident seal, screws, and wire
• High frequency output
• BSP fittings
• No fitting kit

Options (Units)

Rate

• Gal/Min = GPM
• Liters/Sec = LPS
• Liter/Min = LPM
• Cu Ft/Sec = CFS
• Cu Ft/Min = CFM
• Cu Met/Min = CMM
• Cu Met/Hr = CMH
• Mil Gal/Day = MGD
• Mil Lit/Day = MLD

Total

• Gal = G
• Gal x 1000 = GT
• Cubic Feet = CF
• Acre Inch = AI
• Acre Feet = AF
• Liter = L
• Mega Liters = ML
• Cubic Meters = CM
• Cu Met x 1000 = CMT

For more information, please see Data Sheet and Manual
