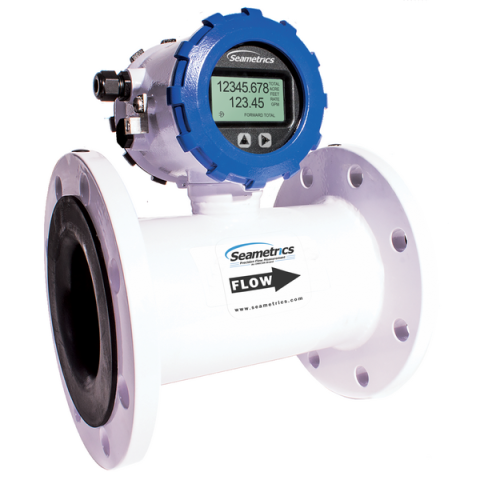

Seametrics IMAG4700p-0300 3" Premium Flanged In-line Magmeter, incl. One Pulse and 4-20 mA Output

The iMAG-Series is the most economical flanged electromagnetic flowmeter on the market. With electrodes designed to discourage fouling, it is available in 3" pipe in municipal or industrial water/wastewater and reclaimed water applications. Pump station, pump skid, and packaged plant applications are also suitable. Minimal straight pipe requirements allow iMAG-Series meters to be used in piping configurations where there is little space between the meter and an elbow.

iMAG-Series meters are CE certified, certified to NSF/ANSI standard 61 and are rated IP68 for applications where the meter may be operated under water to a depth of at least 10 feet (3 meters) continuously.

The display can be meter mounted or remote, and both rate and total indication are standard. Rate and total units and pulse scaling can be set via the front panel touch key pad by the user. Bidirectional flow reading is standard with totals available in forward total, reverse total, net flow total, batch forward flow total, and batch reverse flow total.

The iMAG 4700p is also available in either AC or DC powered versions, with battery backup. Pulse output is standard on all models and 4-20 mA passive current loop is also standard on the iMAG 4700p. A power/output cable allows outputs for use with a variety of Seametrics displays and other controls for remote reading and telemetry applications.

Features

• Easy setup
• Minimal straight pipe
• Mounted or remote display
• Tamper-evident seal
• Certified to NSF/ANSI standard 61
• IP68 rated
• No moving parts
• Data logging (Optional)
• Sensus Smart Output (Optional)
• Telemetry ready for wireless meter reading

Applications

• Water & Wastewater Treatment
• Municipal
• Pump skids
• Pump stations
• Packaged plants
• Filtration systems
• Reclaimed water
• Hydraulic fracturing

Options

• None
• Data Logger
• Sensus Smart Output (Includes 6' Cable)

Ground Rings

• User Installed Grounding Rings
• Factory Installed Grounding Rings

Electrode

• SS Button
• Hastelloy Button
• SS Bullet
• Hastelloy Bullet

Flange

• 150 lb ANSI Pattern

Gaskets

• None
• Non NSF
• NSF

Power

• DC 60Hz
• DC 50Hz
• AC 60Hz
• AC 50Hz

Outputs

• No optional output (requires single cable for DC 50 Hz, DC 60 Hz power & output)
• Modbus (requires dual cable for DC 50 Hz, DC 60 Hz power & output)
• Digital (requires dual cable for DC 50 Hz, DC 60 Hz power & output)
• No optional output (requires single cable for output on AC 50 Hz, AC 60 Hz)
• Modbus (requires dual cable for output on AC 50 Hz, AC 60 Hz)
• Digital (requires dual cable for output on AC 50 Hz, AC 60 Hz)

DC Power/Output Cable

• No cable
• Single Conductor 6 m (20 ft)
• Single Conductor 15 m (50 ft)
• Single Conductor 30 m (100 ft)
• Single Conductor 45 m (150 ft)
• Single Conductor 60 m (200 ft)
• Dual Conductor 6 m (20 ft)
• Dual Conductor 15 m (50 ft)
• Dual Conductor 30 m (100 ft)
• Dual Conductor 45 m (150 ft)
• Dual Conductor 60 m (200 ft)

For more information, please see Data Sheet and Manual
