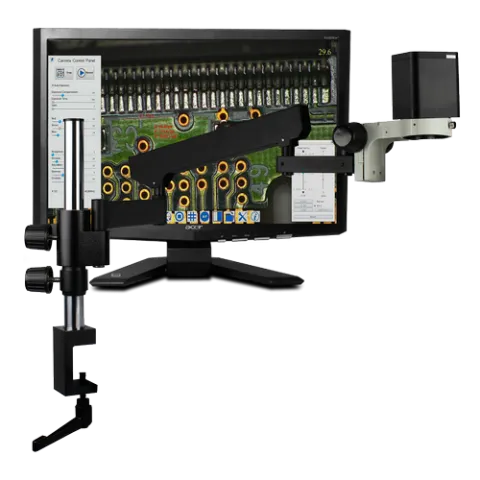

Scienscope MAC-PK3-A1-4K Digital Inspectrion System with All-One 4K Digital Camera, Heavy Duty Articulating Arm, 23" HD LCD Monitor

The 4K All-One Camera from Scienscope is THE advanced all-in-one inspection solution-all you need to inspect or convert any optical microscope system into a powerful digital inspection tool. The 4K All-One(AO) includes internal software-controlled optics, integrated image processing and capture software, measuring tools with an onscreen magnification display, integrated LED lighting, and a mounting adapter. Experience full 4K image quality with no image delay. Measure anything using the onboard field-of-view measuring tools, DXF overlay, or multi-line generator. Export your measurement data and images with measured objects!

Features:

• Optics consist of 5 groups with 16 elements, offering a 20X zoom ratio and up to 90X magnification.
• Motorized Zoom / Auto and manual focus
• 192mm standard working distance with 150-195mm depth of field
• Removable/Integrated LED ring light
• 76mm diameter adapter bracket and 1/4" 20 mounting thread for mounting
• Sony 1/2.8" 4K Starvis CMOS
• 4K/1080P at 30 FPS auto switching according to monitor resolution
• SD card/USB flash drive stores image and video capture, support local preview/playback
• 4K HDMI/USB/ETH/WiFi multiple video outputs
• Embedded mouse control panel, Measurement Toolbar, Comprehensive Control Toolbar, Auto-focus, and zoom control panel
• Onscreen magnification display
• Image and video capture to SD card or USB Flash drive
• Split-screen live image/captured image comparison
• Image and video gallery / Image and video review
• Wireless mouse control

Package Content:

• All-One 4K UHD Camera with integrated optics (80x Max) and integrated diffused LED ring light and mounting adapter
• Integrated diffused LED ring light
• Mounting adapter
• SD or USB card capture
• Includes 23" HD LCD monitor
• Capture software
• Heavy Duty Articulating Arm
