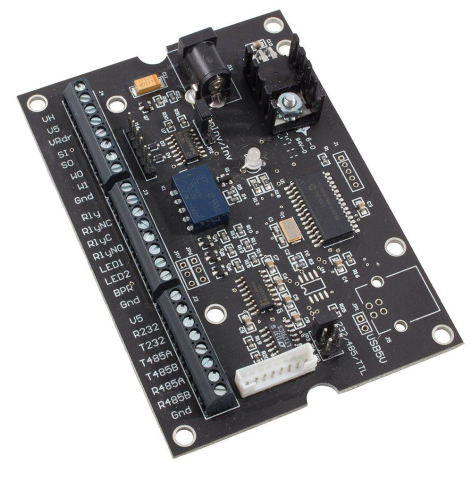

rf IDEAS OEM-W2RS232-V3 Wiegand to RS232 Serial Converter

Wiegand to Serial The Wiegand Converter integrates all standard Wiegand based reader technologies into other applications. The Converter has multiple uses. It serves as a WAVE ID ® card data converter, translating all major Wiegand data .

The Wiegand Converter integrates all standard Wiegand based reader technologies into other applications. The Converter has multiple uses. It serves as a WAVE ID ^® card data converter, translating all major Wiegand data outputs to USB, RS-232, RS-485 or TTL. We offer models for Wiegand output from standard proximity and contactless smart card readers as well as FIPS201/TWIC 200 bit CHUID output readers. Provides the computer/terminal/PLC interface when using ID badges for more than door access. The converter output is sent to the serial port either as ASCII characters or through a callable DLL for software developers. Selectable card information can be configured in the converter's flash memory using free software. Perfect for those requiring WAVE ID^® Enroll functionality but require an outdoor reader with longer read range.

Features:

• Platform independent
• Supports any operating system with USB, RS-232 or RS-485 support
• Configurability and compatibility

Benefits:

• Compatible with any Wiegand device
• Converter comes with configurable flash memory to support any card format
• Easy installation when using the supplied Snap-Trak or with an optional enclosure
